Removal and Installation: Removal

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove storage box. Refer to Removal and Installation .

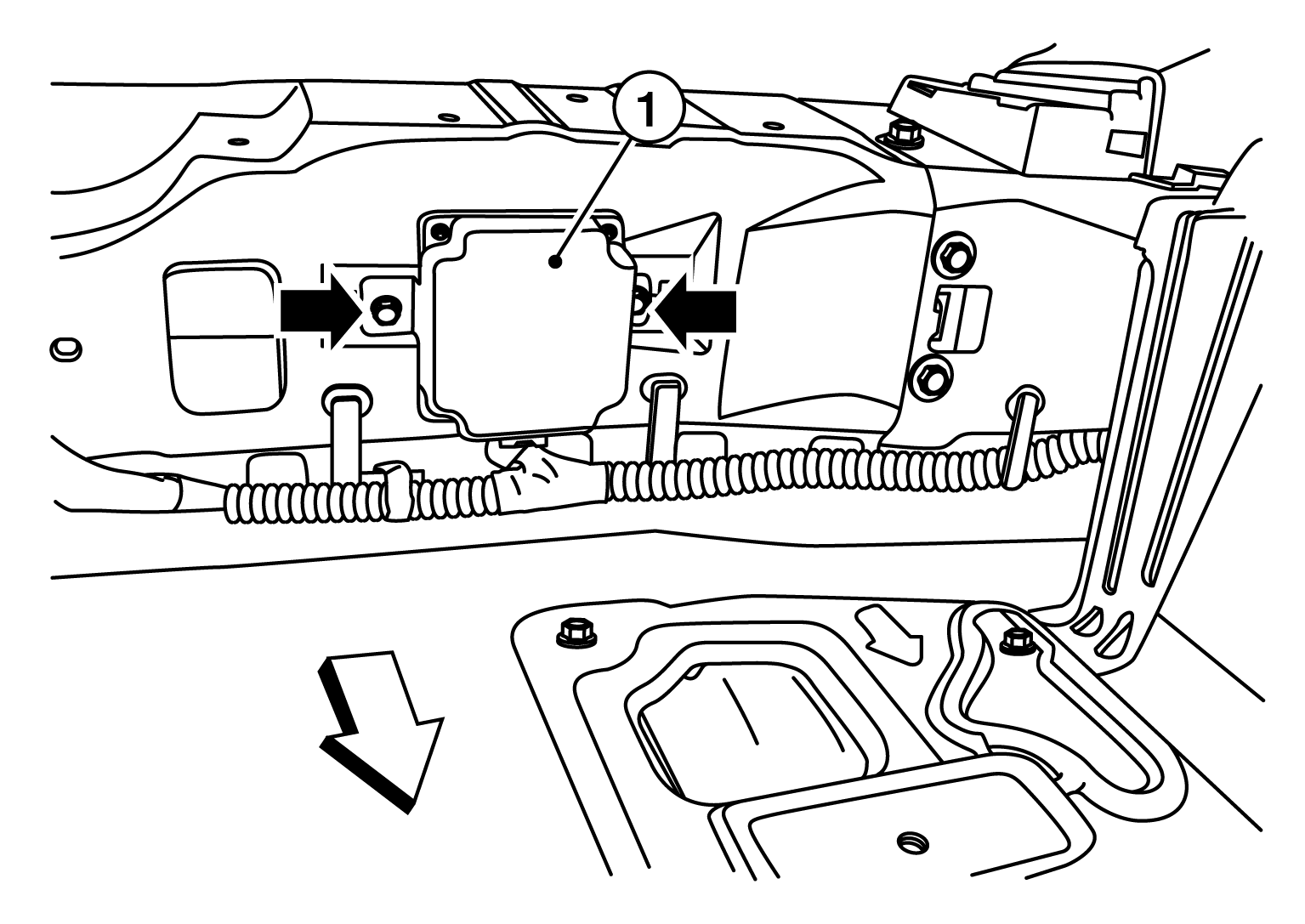

  2. Remove AWD control unit bolts (SYMBOL ).
    GNSALDIA0278Z-278Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Front
  3. Disconnect AWD control unit harness connector.
  4. Remove AWD control unit (1).
