Special Service Tool
WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
The actual shape of the tools may differ from those illustrated here.
|
Tool number (TechMate No.) Tool name |
Description |
|
|

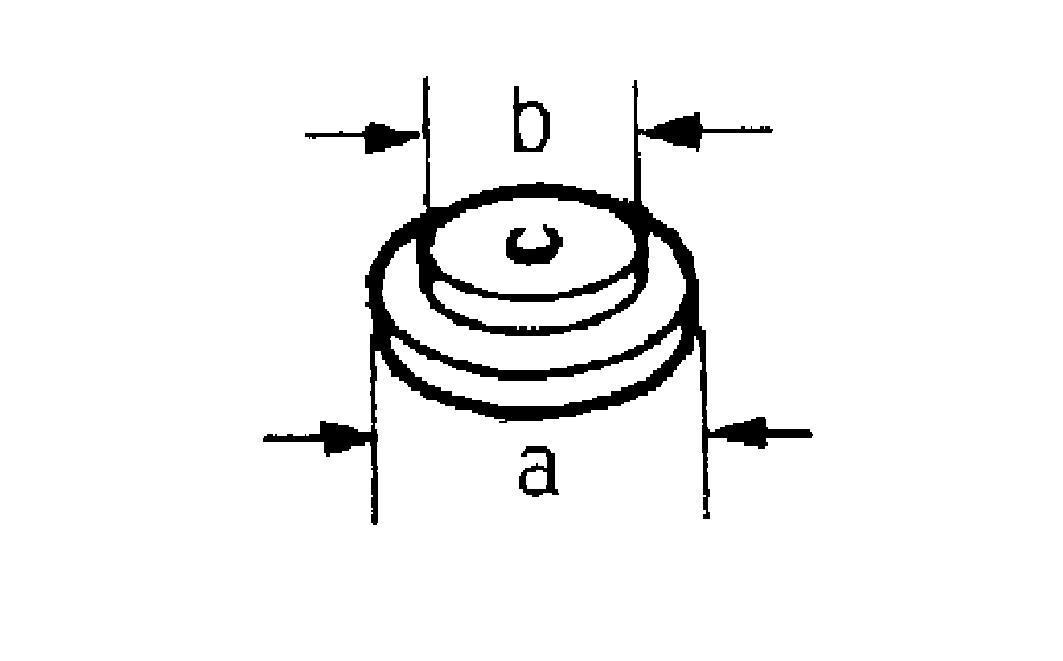

ST33061000 (J-8107-2) Drift |
Removing ring gear bearing (left) inner race (transfer case side) a: 38 mm (1.50 in) dia. b: 28.5 mm (1.122 in) dia. |
|
|

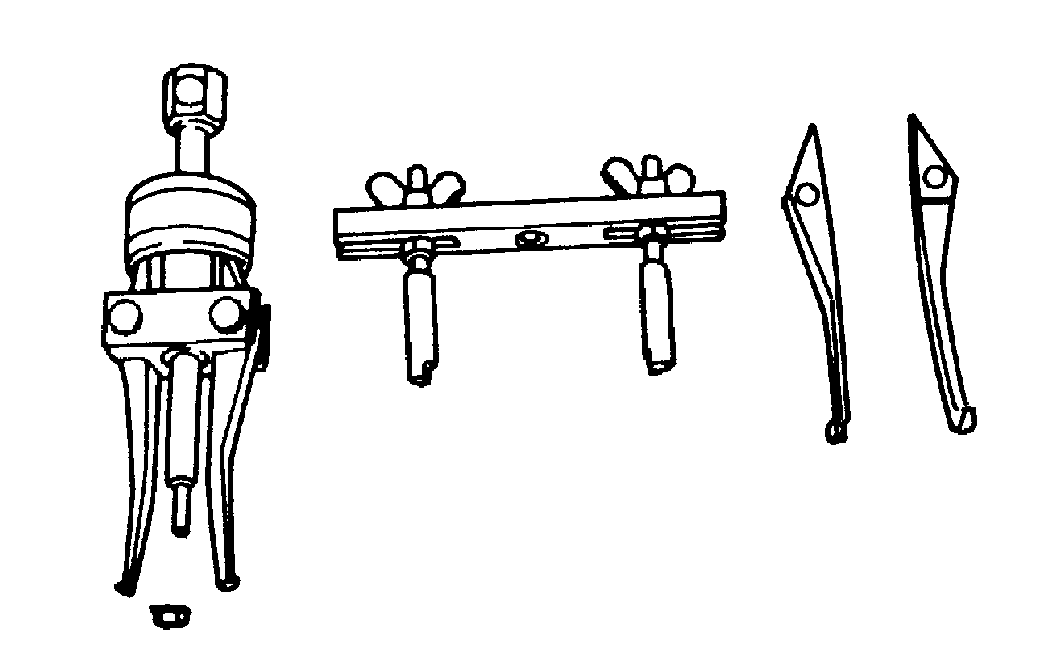

KV381054S0 (J-34286) Puller |
Removing ring gear shaft oil seal |
|
|
ST3127S000 (J-25765-A) Preload gauge |
Measuring preload torque |
|
