Transfer Oil Level

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Do not start engine while checking transfer oil level.

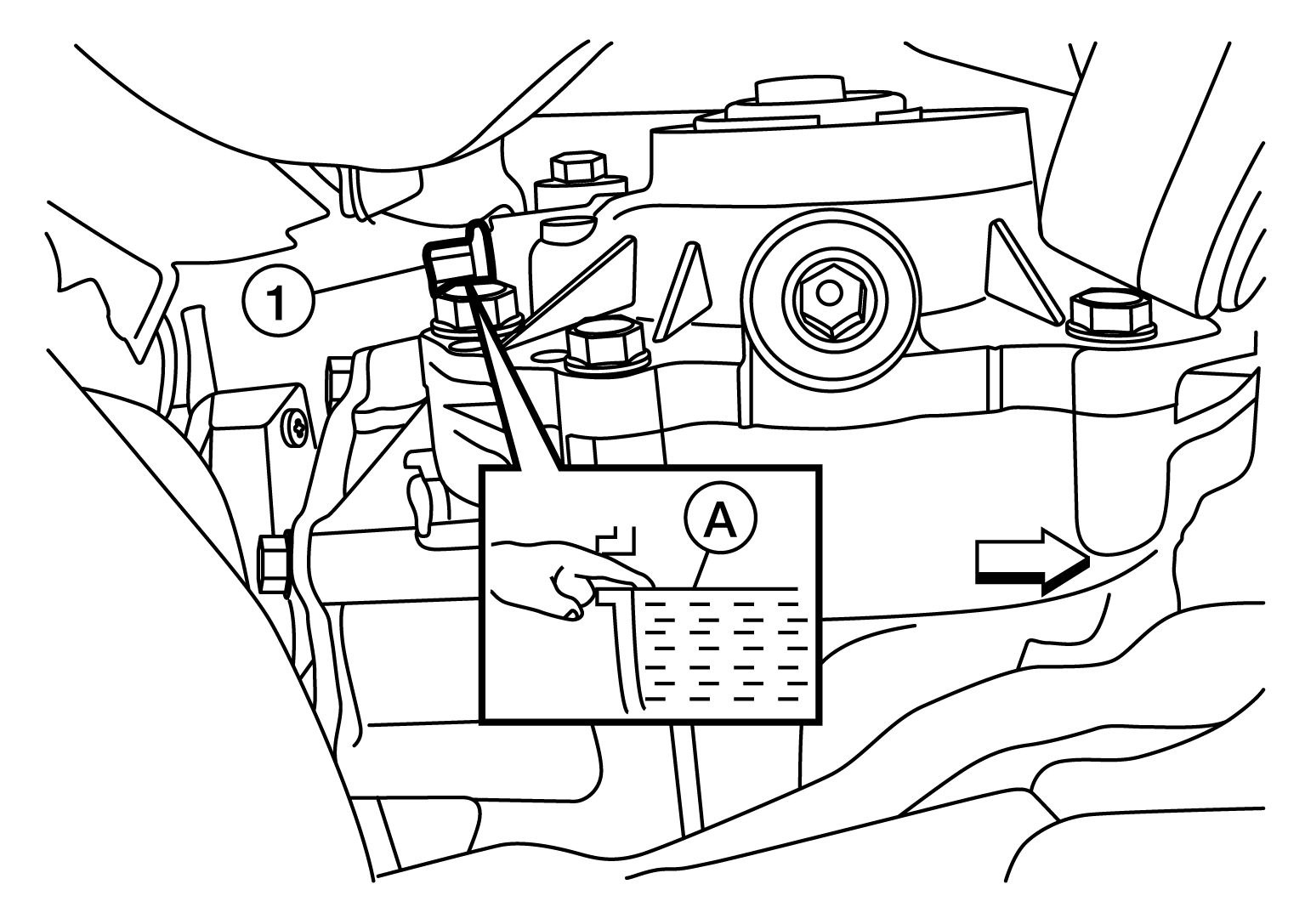

Remove filler plug (1) and gasket.

Courtesy of NISSAN NORTH AMERICA, INC.

: Front
Transfer oil level (A) should be level with bottom of filler plug hole. Add transfer oil if necessary. Refer to Fluids and Lubricants .
Set a new gasket onto filler plug, and install it in the transfer and tighten to specified torque. Refer to Exploded View .
CAUTION: Do not reuse gasket.
