Method Of Starting

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn the ignition ON.
  2. Turn the audio system OFF.

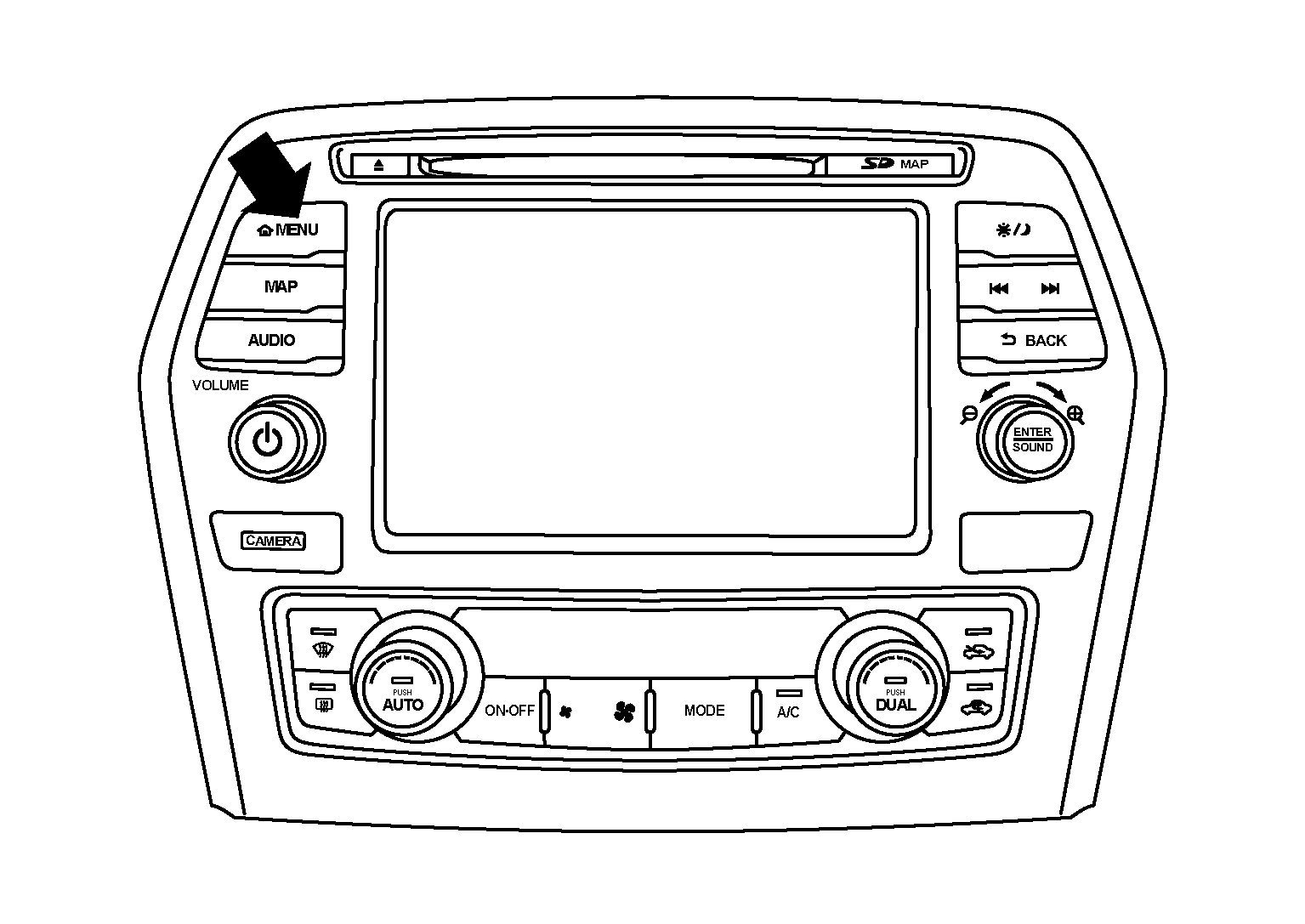

  3. Press and hold the MENU button.
    GNSALNIA1766Z-766Courtesy of NISSAN NORTH AMERICA, INC.

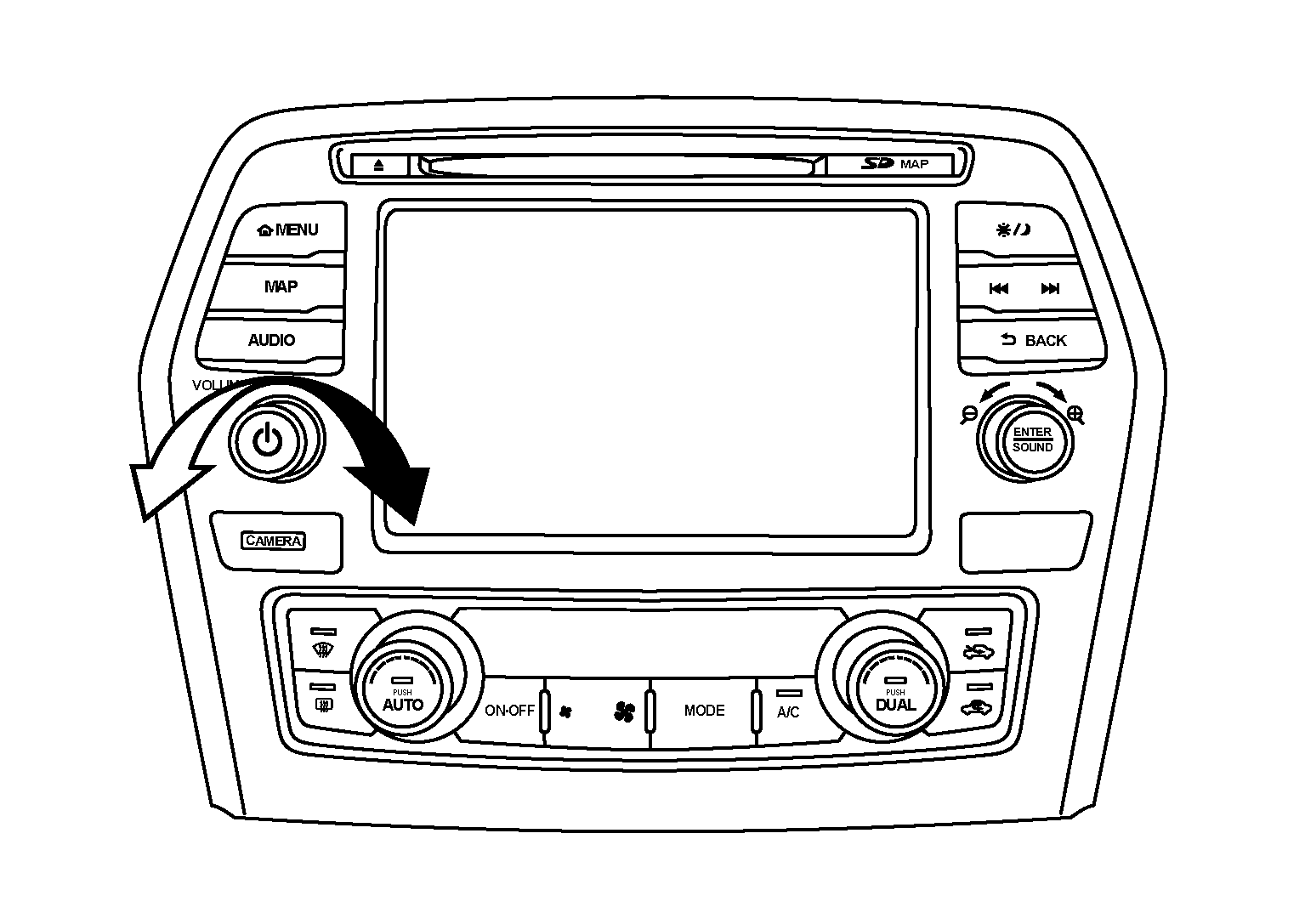

  4. While menu button is being held, rotate the volume knob left at least 7 clicks, right at least 7 clicks and left again at least 7 clicks.
    GNSALNIA1767Z-767Courtesy of NISSAN NORTH AMERICA, INC.
  5. The System Diagnostic Menu screen is displayed, and "Self Diagnosis" or "Confirmation/Adjustment" can be selected.
