Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: The steering switches are serviced as an assembly.
  1. Remove steering wheel. Refer to Removal and Installation .

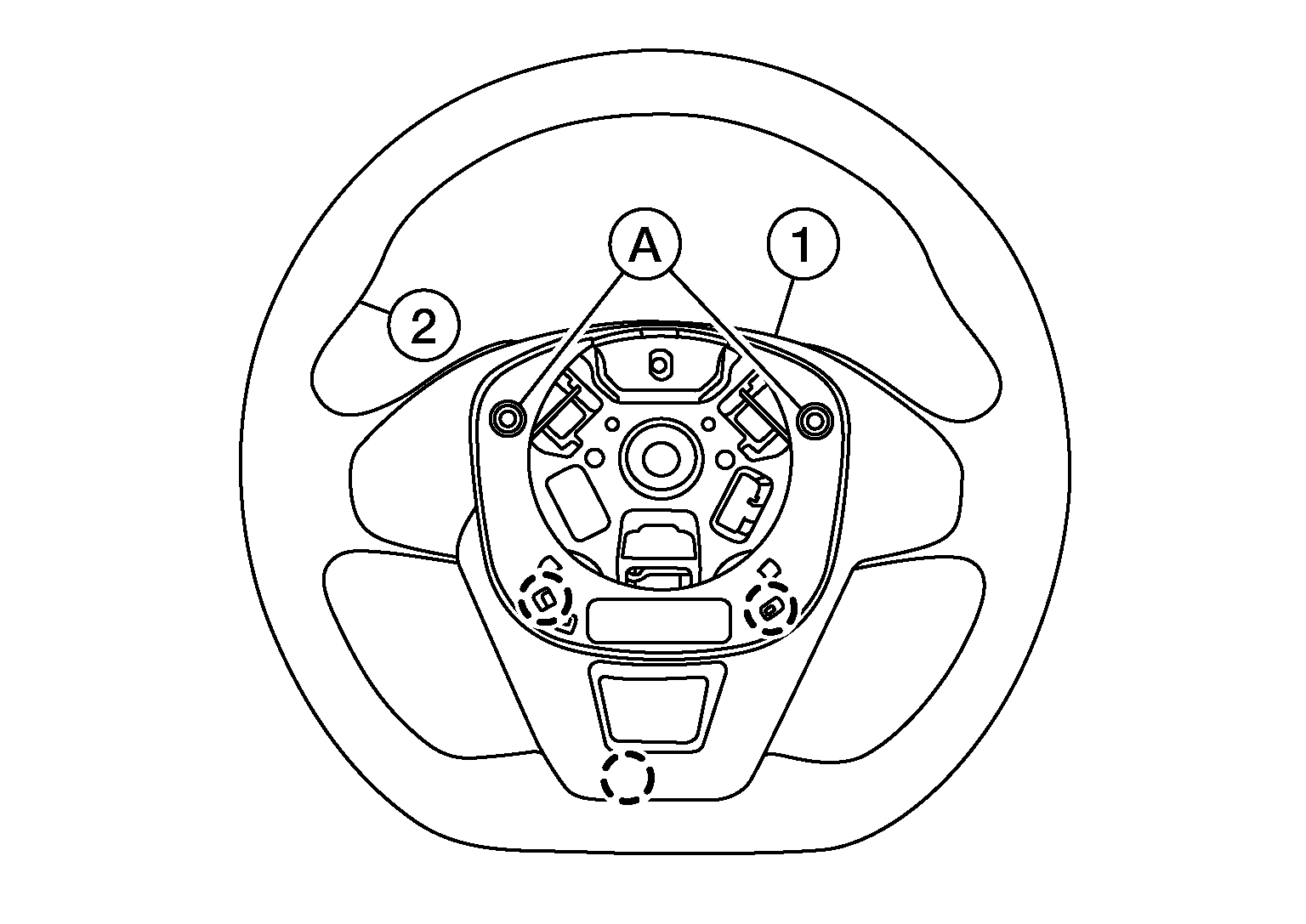

  2. Remove screws (A) and pawls. Disconnect harness connector then remove steering wheel rear finisher (1) from steering wheel (2).
    GNSAWNIA0019Z-019Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Pawl

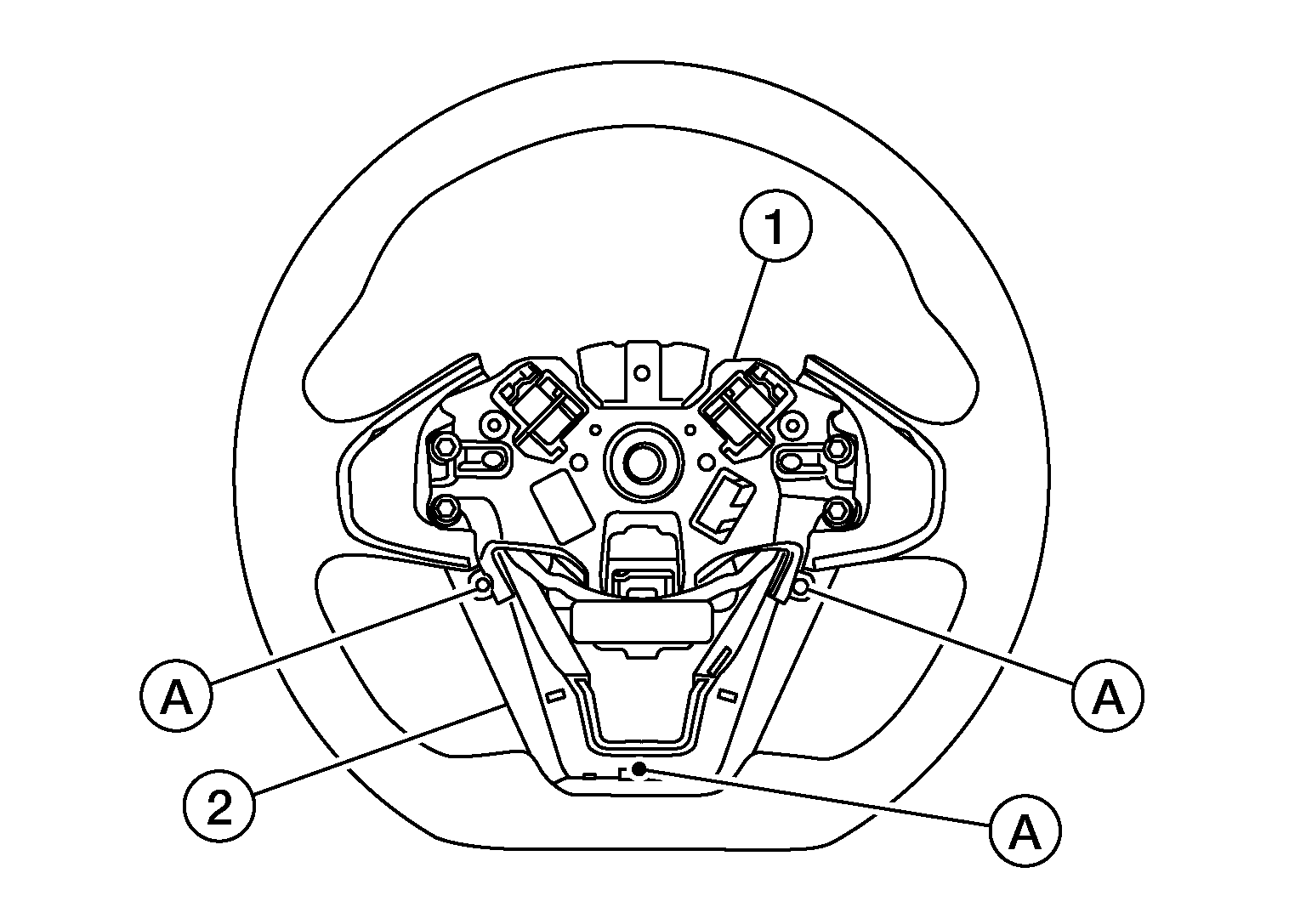

  3. Remove screws (A) then remove steering wheel front finisher (2) from steering wheel (1).
    GNSAWNIA0020Z-020Courtesy of NISSAN NORTH AMERICA, INC.
  4. Remove screws (A) and remove steering switches from steering wheel (1).
    GNSALNIA1733Z-733Courtesy of NISSAN NORTH AMERICA, INC.
