Exploded View

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

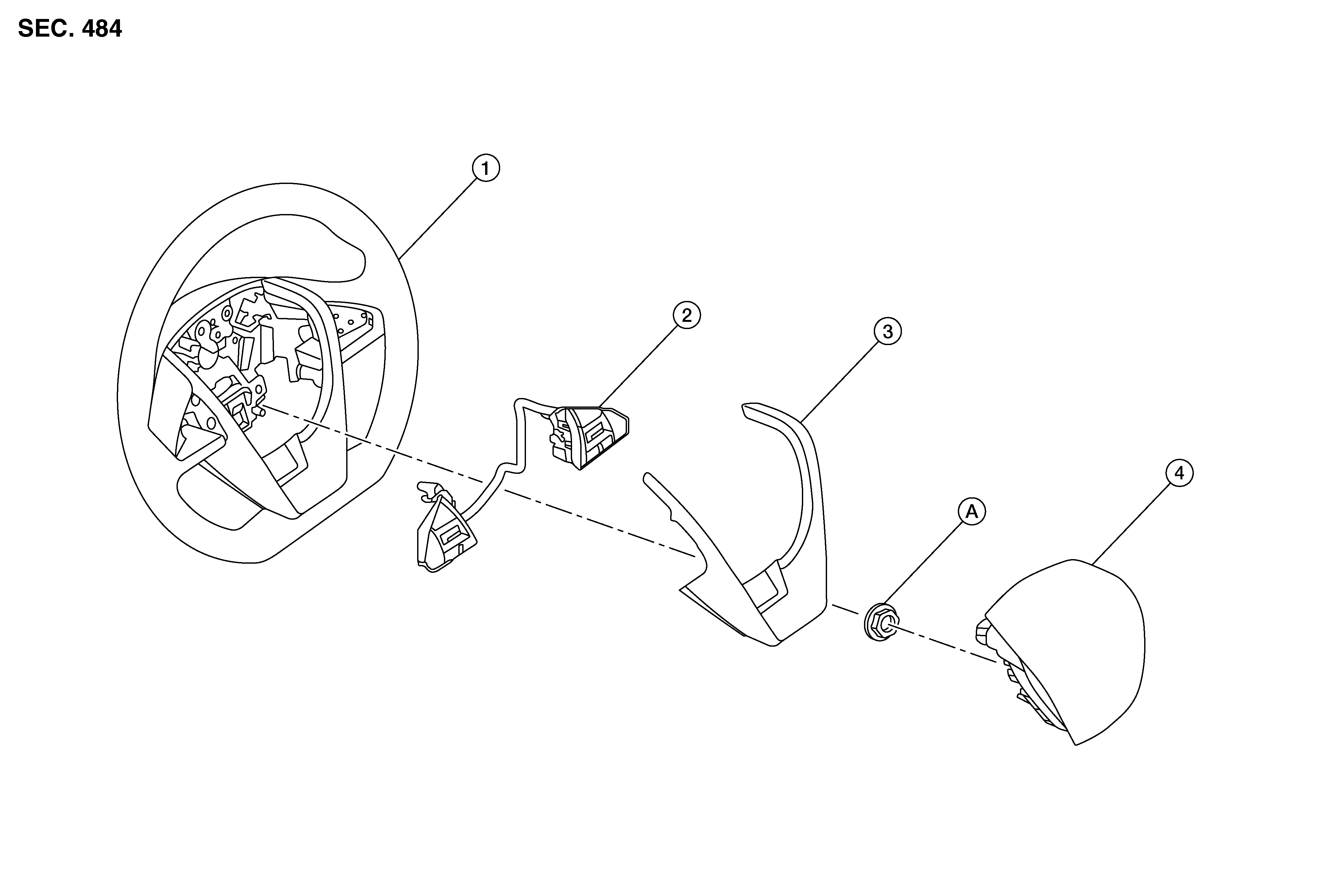

GNSAWNIA0021Z-021Courtesy of NISSAN NORTH AMERICA, INC.

1.

Steering wheel

2.

Steering wheel switches

3.

Steering wheel front finisher

4.

Driver air bag module

A.

Steering wheel nut
