Component Parts Location
WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
|

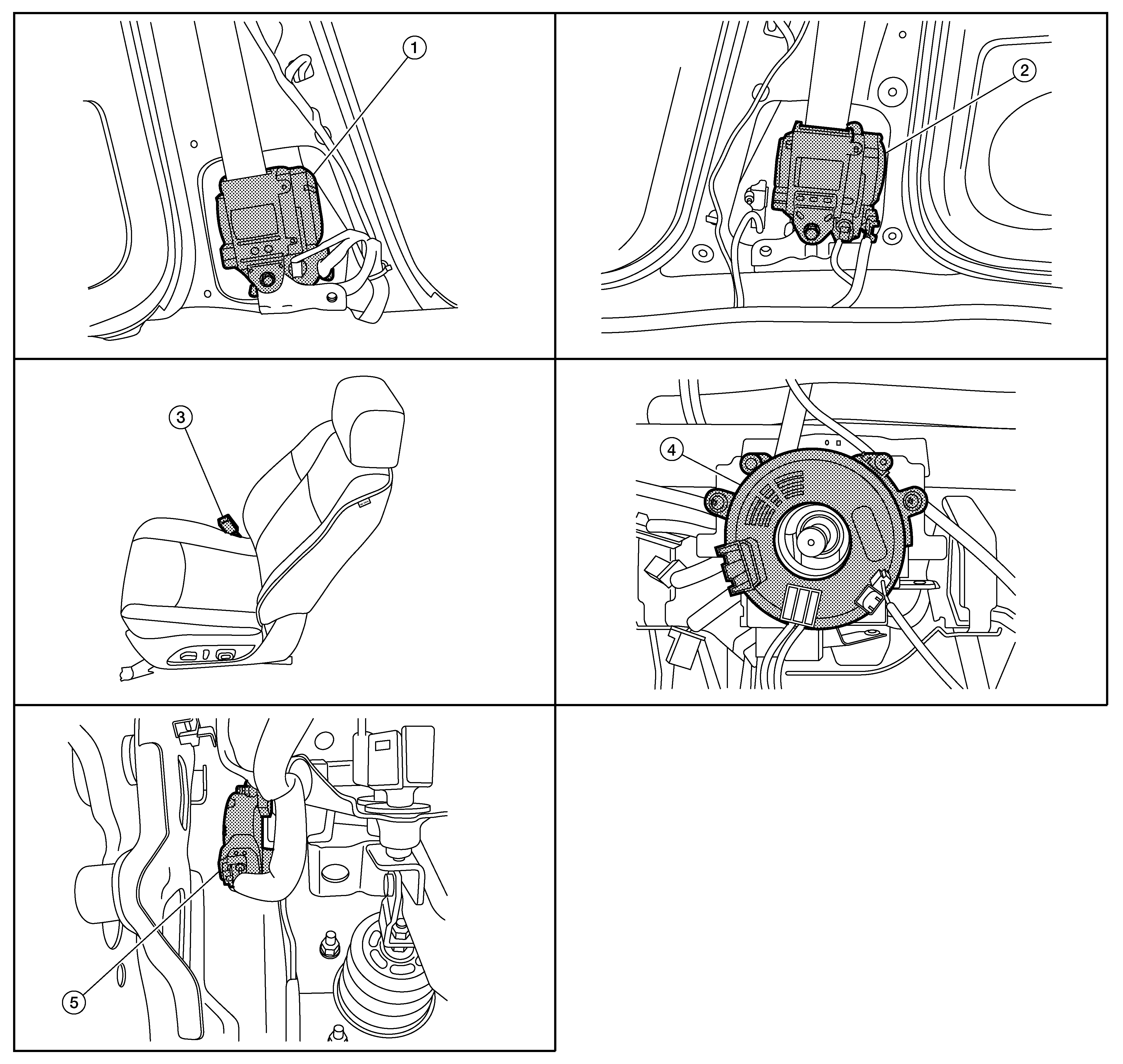

1. |
Pre-crash seat belt control unit LH (View with center pillar lower garnish LH removed.) |
2. |
Pre-crash seat belt control unit RH (View with center pillar lower garnish RH removed.) |
3. |
Seat belt buckle switch LH (RH similar) |
|
4. |
Steering angle sensor (view with steering wheel removed) |
5. |
Brake pedal stroke sensor (View with instrument lower panel LH removed.) |
