Removal and Installation: Removal
WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the instrument lower panel LH. Refer to Removal and Installation .
- Disconnect the harness connector from brake pedal stroke sensor.
- Remove brake booster rod cotter pin and clevis pin.

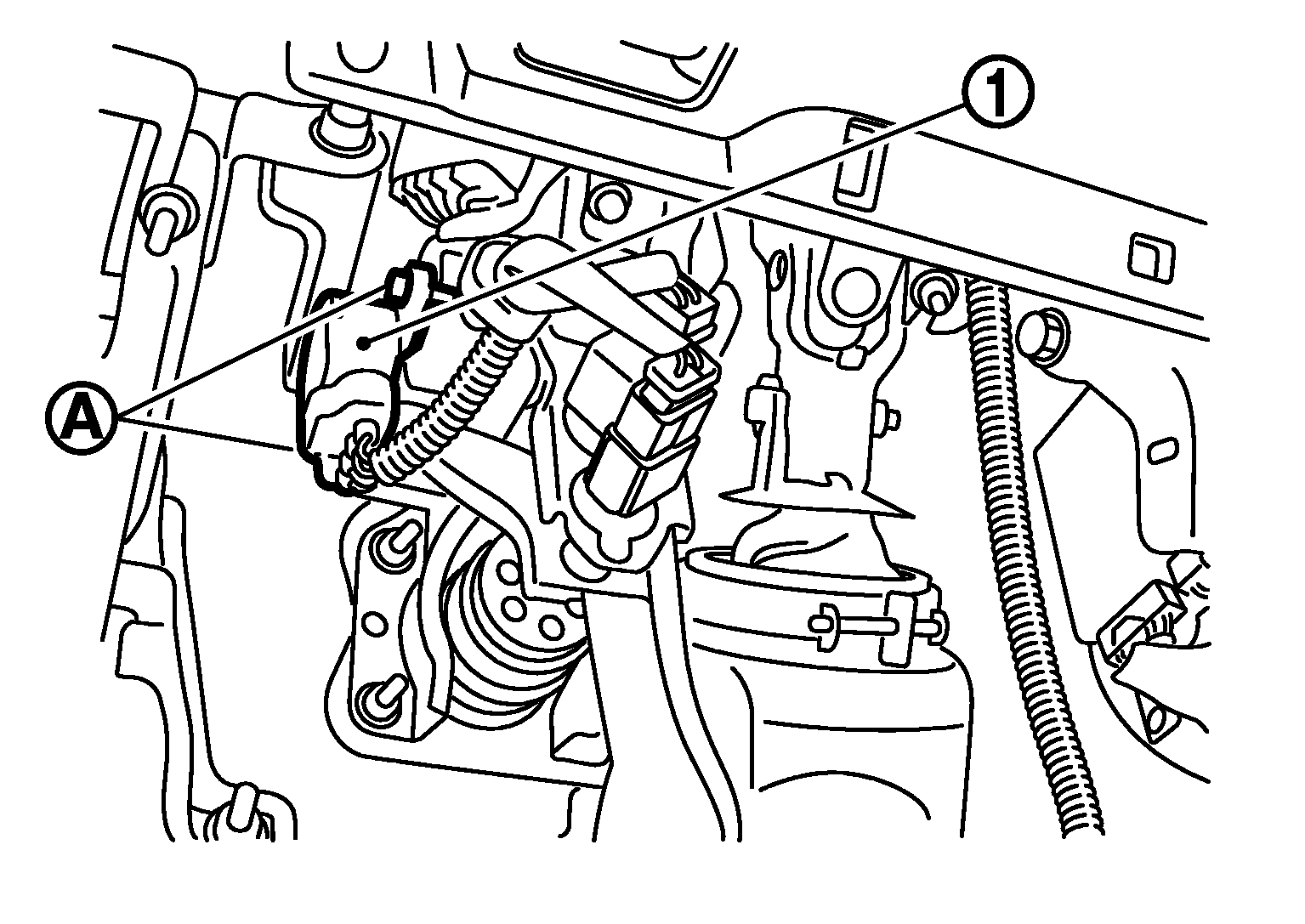

- Remove the two brake pedal stroke sensor nuts (A).
- Remove the brake pedal stroke sensor (1).
