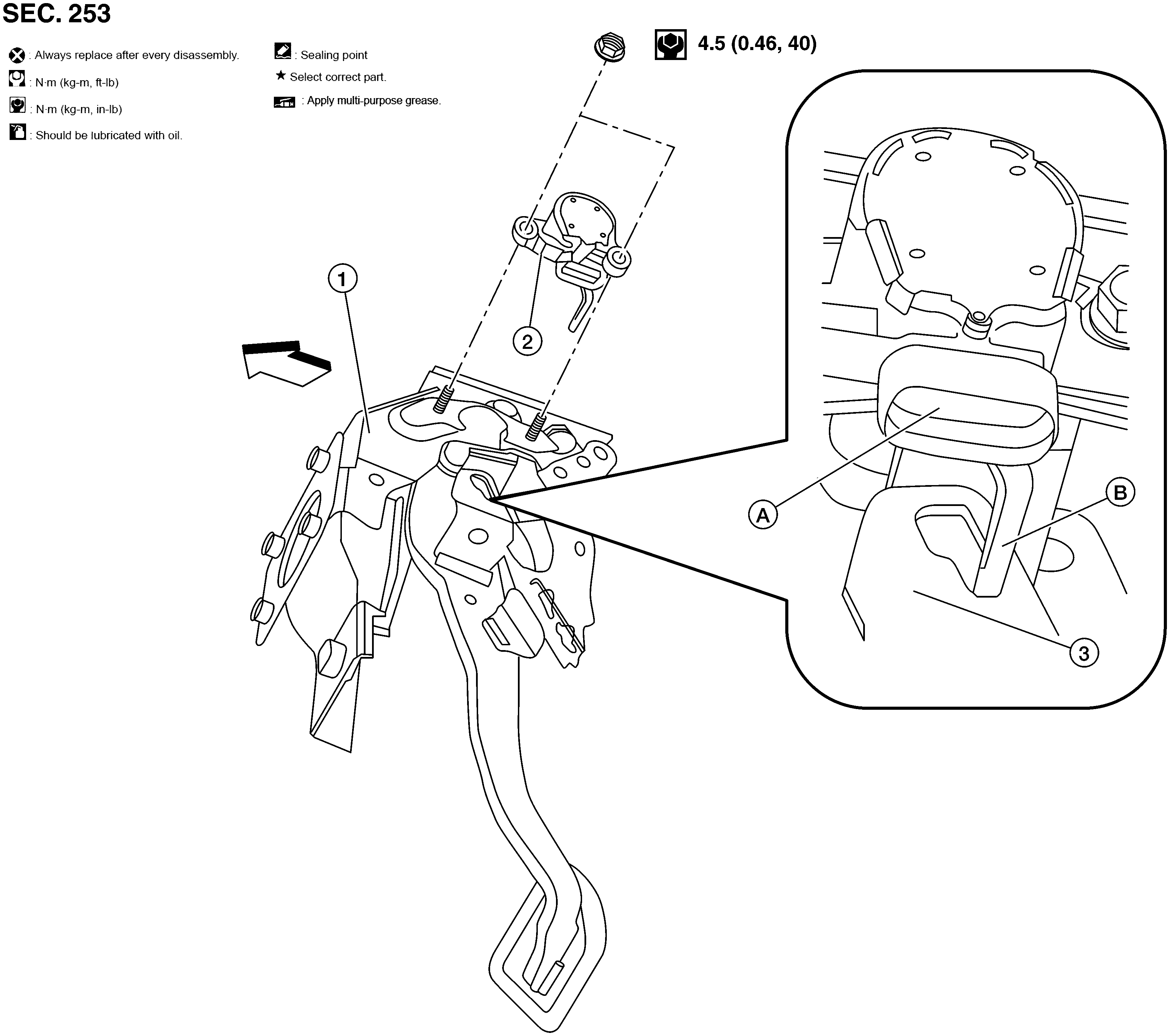

Exploded View
WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
|
1.
|
Brake pedal assembly
|
2.
|
Brake pedal stroke sensor
|
3.
|
Brake pedal sensor bracket
|
|
A.
|
Brake pedal stroke sensor connector
|
B.
|
Brake pedal stroke sensor lever
|
|
Front
|
