Component Inspection (Fuel Injector Relay)

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

CHECK FUEL INJECTOR RELAY

Turn ignition switch OFF.
Remove fuel injector relay.

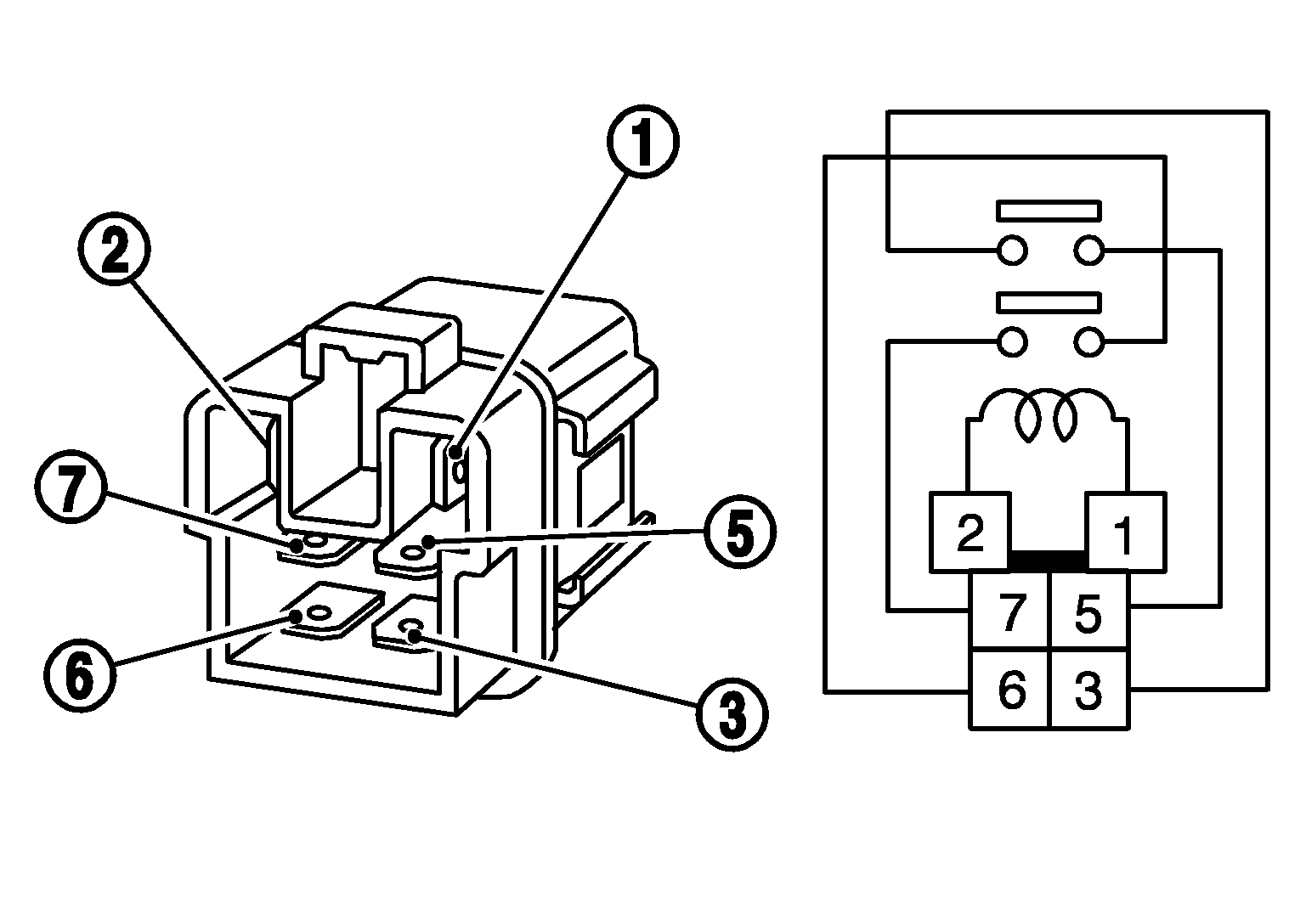

Check the continuity between fuel heater relay terminals as per the following conditions.

Courtesy of NISSAN NORTH AMERICA, INC.

Fuel injector relay	Conditions	Continuity
Terminal
	12 V direct current supply between terminals and	Existed
	No current supply	Not existed
	12 V direct current supply between terminals and	Existed
	No current supply	Not existed

Is the inspection result normal?

YES

INSPECTION END

Replace fuel injector relay.
