Component Inspection (Cooling Fan Relay)

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

CHECK COOLING FAN RELAY

Turn ignition switch OFF.
Remove cooling fan relay.

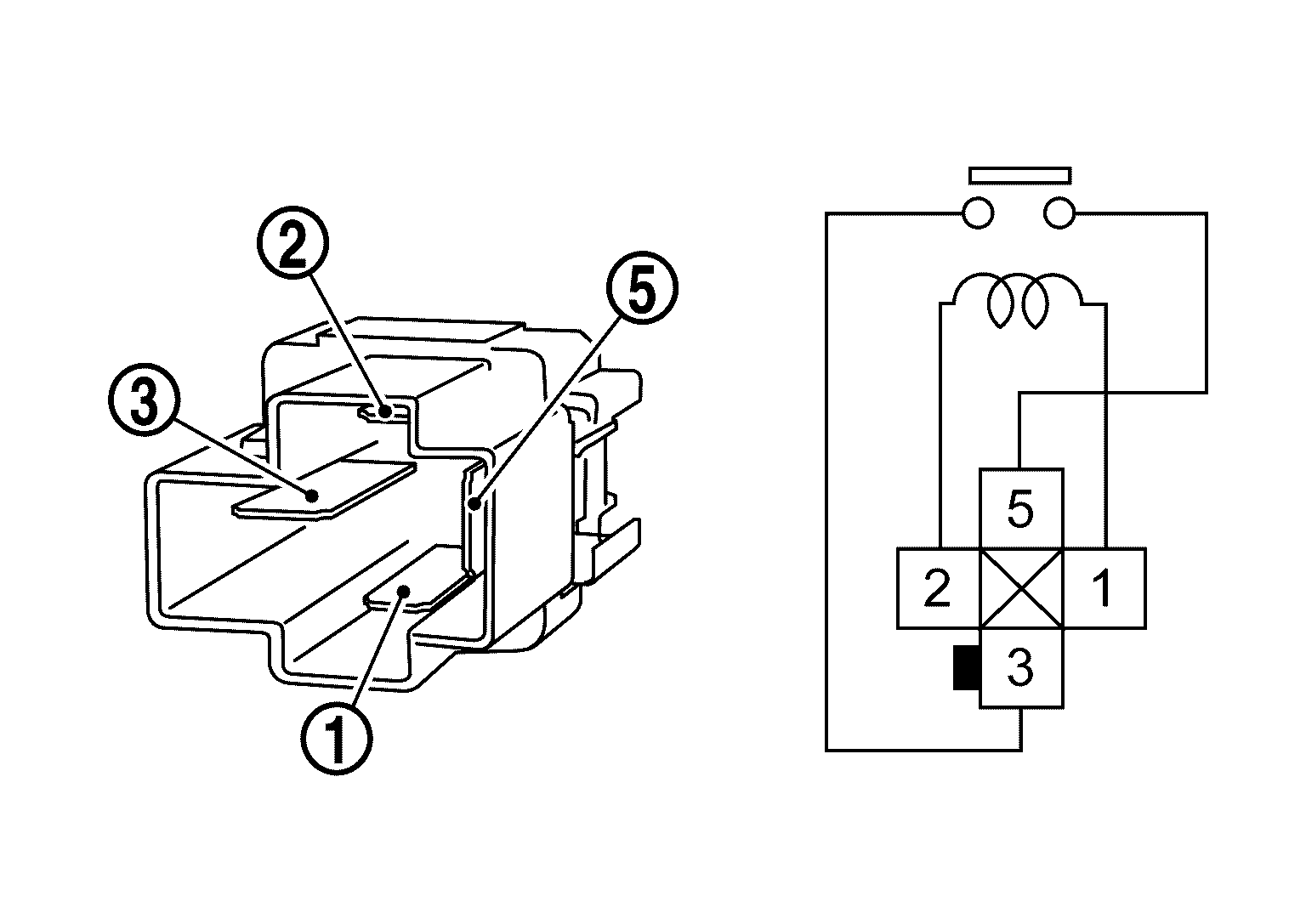

Check the continuity between cooling fan relay terminals under the following conditions.

Courtesy of NISSAN NORTH AMERICA, INC.

Terminals	Conditions	Continuity
and	12 V direct current supply between terminals and	Existed
and	No current supply	Not existed

Is the inspection result normal?

YES

INSPECTION END

Replace malfunctioning cooling fan relay.
