Seat Belt Buckle (RH)

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

Removal

Slide the second row LH seat to the full forward position and move the second row RH seat to the full rearward position.
Remove outer finisher (LH) (1).

Courtesy of NISSAN NORTH AMERICA, INC.

: Pawl

: Clip
Remove seat belt buckle (RH) anchor bolt (A).

Courtesy of NISSAN NORTH AMERICA, INC.

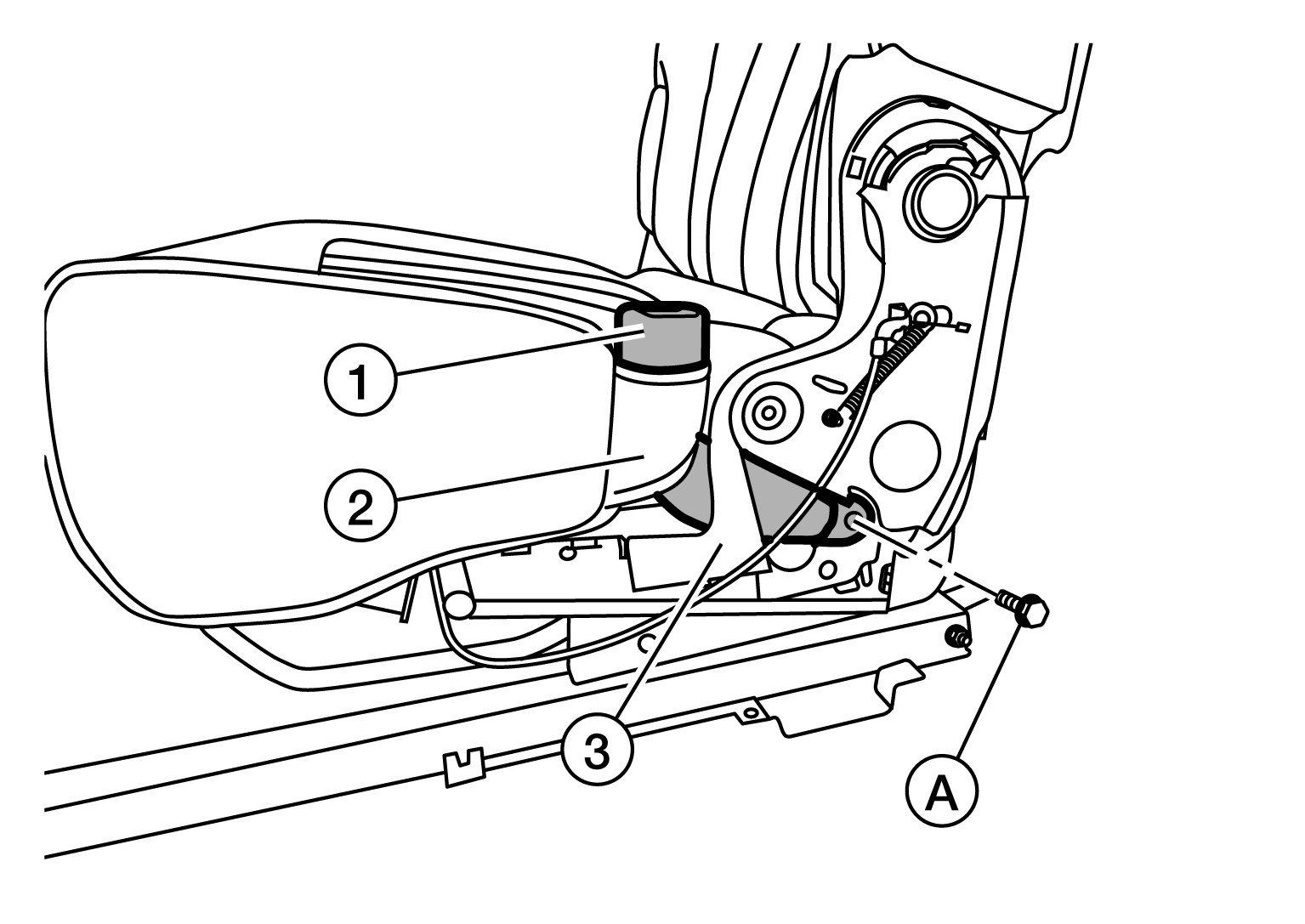

Route the seat belt buckle (RH) (1) through the opening in the seat cushion trim (2) and behind inner finisher (LH) (3).

Installation

Installation is in the reverse order of removal.

Tighten the seat belt buckle anchor bolt to specification.
Always perform an inspection after repair to make sure the system is functioning within specifications. Refer to Inspection .
