Diagnosis Procedure

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK CONTINUITY OF CIRCUITS BETWEEN AV CONTROL UNIT AND TCU
    1. Turn ignition switch OFF.
    2. Disconnect AV control unit connector M163 and TCU connector M173.
    3. Check continuity between AV control unit connector M163 and TCU connector M173.

      AV control unit

      TCU

      Continuity

      Connector

      Terminal

      Connector

      Terminal

      M163

      46

      M173

      12

      Yes

      48

      11

    4. Check the continuity between AV control unit connector M163 and ground.

      AV control unit

      Ground

      Continuity

      Connector

      Terminal

      M163

      46

      -

      No

      48

    Is the inspection result normal?

    YES

    GO TO 2 .

    NO

    Repair or replace harness or connectors.

  2. CHECK MICROPHONE SIGNAL (AV CONTROL UNIT)
    1. Connect TCU connector M173.
    2. Turn ignition switch ON.
    3. Check the signal between the terminals of AV control unit connector M163.

      AV control unit connector M163

      Condition

      Reference value

      (+)

      (-)

      Terminal

      46

      48

      Speak into microphone.

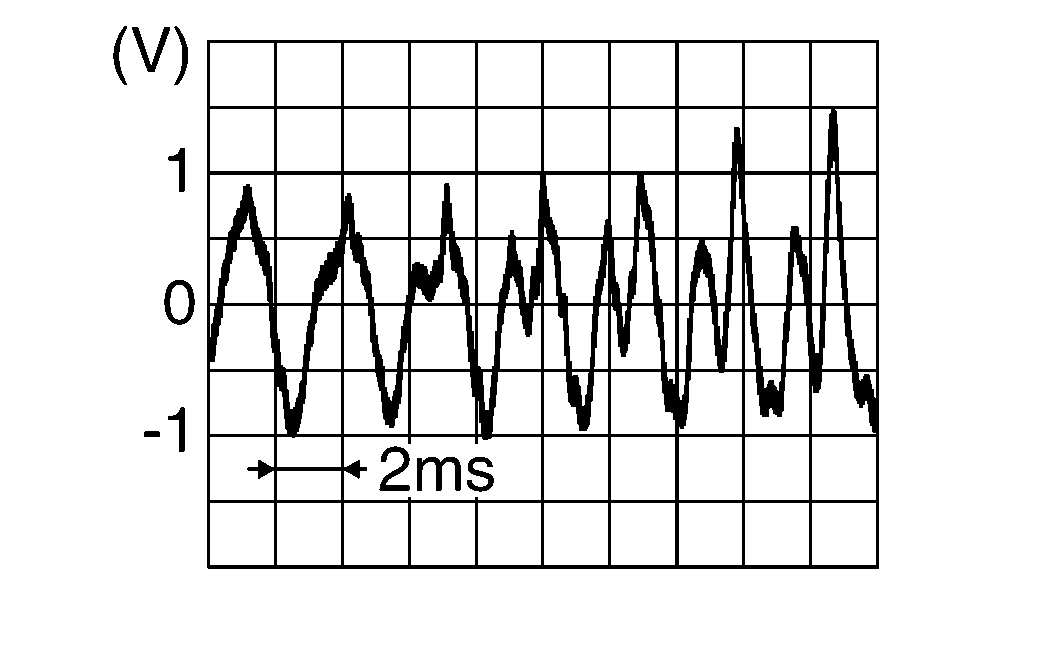

      GNSPSKIB3609E-609Courtesy of NISSAN NORTH AMERICA, INC.

    Is the inspection result normal?

    YES

    Replace AV control unit. Refer to Removal and Installation .

    NO

    GO TO 3 .

  3. CHECK CONTINUITY OF CIRCUITS BETWEEN TCU AND MICROPHONE
    1. Turn ignition switch OFF.
    2. Disconnect TCU connector M173 and microphone connector.
    3. Check continuity between TCU connector M173 and microphone connector R22.

      TCU

      Microphone

      Continuity

      Connector

      Terminal

      Connector

      Terminal

      M173

      16

      R22

      2

      Yes

      17

      1

      18

      4

    4. Check the continuity between TCU connector M173 and ground.

      TCU

      Ground

      Continuity

      Connector

      Terminal

      M173

      17

      -

      No

      18

    Is the inspection result normal?

    YES

    GO TO 4 .

    NO

    Repair or replace harness or connectors.

  4. CHECK VOLTAGE MICROPHONE POWER SUPPLY
    1. Connect TCU connector M173.
    2. Turn ignition switch ON.
    3. Check the voltage between TCU connector M173 and ground.

    TCU

    Ground

    Voltage

    (Approx.)

    Connector

    Terminal

    M173

    18

    (-)

    5.0 V

    Is the inspection result normal?

    YES

    GO TO 5 .

    NO

    Replace TCU. Refer to Removal and Installation .

  5. CHECK MICROPHONE SIGNAL (TCU)
    1. Turn ignition switch OFF.
    2. Connect microphone connector.
    3. Turn ignition switch ON.
    4. Check the signal between the terminals of TCU connector M173.

      TCU connector M173

      Condition

      Reference value

      (+)

      (-)

      Terminal

      17

      16

      Speak into microphone.

      GNSPSKIB3609E-609Courtesy of NISSAN NORTH AMERICA, INC.

    Is the inspection result normal?

    YES

    Replace TCU. Refer to Removal and Installation .

    NO

    Replace microphone. Refer to Removal and Installation .
