User Mode

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

Turn the ignition switch from OFF to ON and check that the air bag warning lamp blinks.
Compare the blinking pattern with the examples in the table.

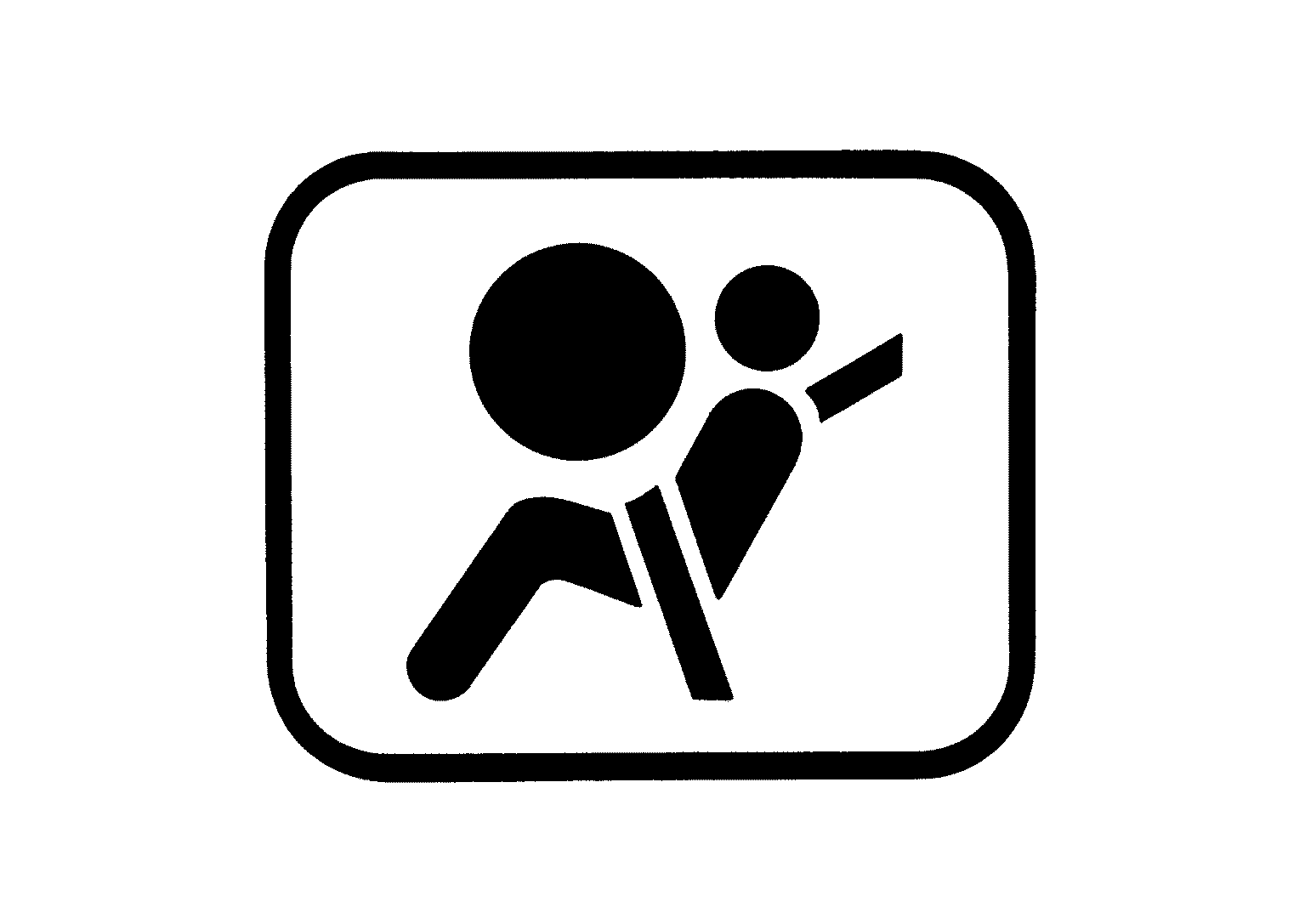

GNSPBF1845D-845

Courtesy of NISSAN NORTH AMERICA, INC.

Air bag warning lamp flashing pattern (User Mode)

Warning lamp	SRS condition	Reference item
Courtesy of NISSAN NORTH AMERICA, INC.	No malfunction is detected. No further action is necessary.	--
Courtesy of NISSAN NORTH AMERICA, INC.	The system is malfunctioning and needs to be repaired.	Refer to Trouble Diagnosis with CONSULT or Trouble Diagnosis without CONSULT .
Courtesy of NISSAN NORTH AMERICA, INC.	Zero point reset is incomplete	Refer to Special Repair Requirement .
Courtesy of NISSAN NORTH AMERICA, INC.	Air bag is deployed. Seat belt pre-tensioner is deployed.	Refer to For Frontal Collision or For Side and Rollover Collision .
Courtesy of NISSAN NORTH AMERICA, INC.	Air bag diagnosis sensor unit is malfunctioning. Air bag power supply circuit is malfunctioning. SRS air bag warning lamp circuit is malfunctioning.	Refer to AIR BAG Warning Lamp Does Not Turn Off .
Courtesy of NISSAN NORTH AMERICA, INC.	Air bag diagnosis sensor unit is malfunctioning. Air bag warning lamp circuit is malfunctioning.	Refer to AIR BAG Warning Lamp Does Not Turn On .
