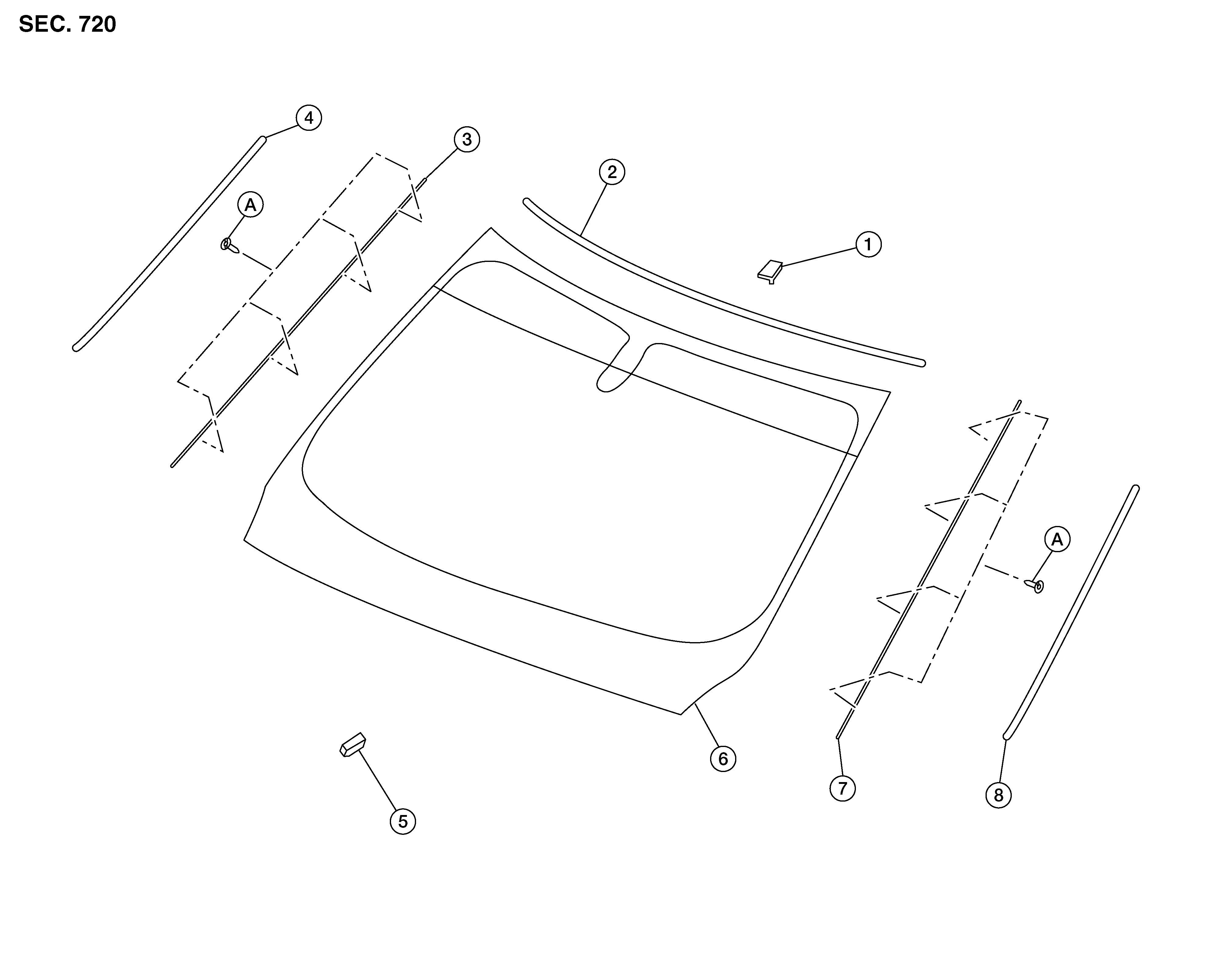

Exploded View
WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
1.
|
Inside mirror base
|
2.
|
Windshield glass upper finisher molding
|
3.
|
Windshield glass side molding (RH)
|
|
4.
|
Windshield glass side finisher (RH)
|
5.
|
Glass spacer
|
6.
|
Windshield glass
|
|
7.
|
Windshield glass side molding (LH)
|
8.
|
Windshield glass side finisher (LH)
|
A.
|
Rivet
|
