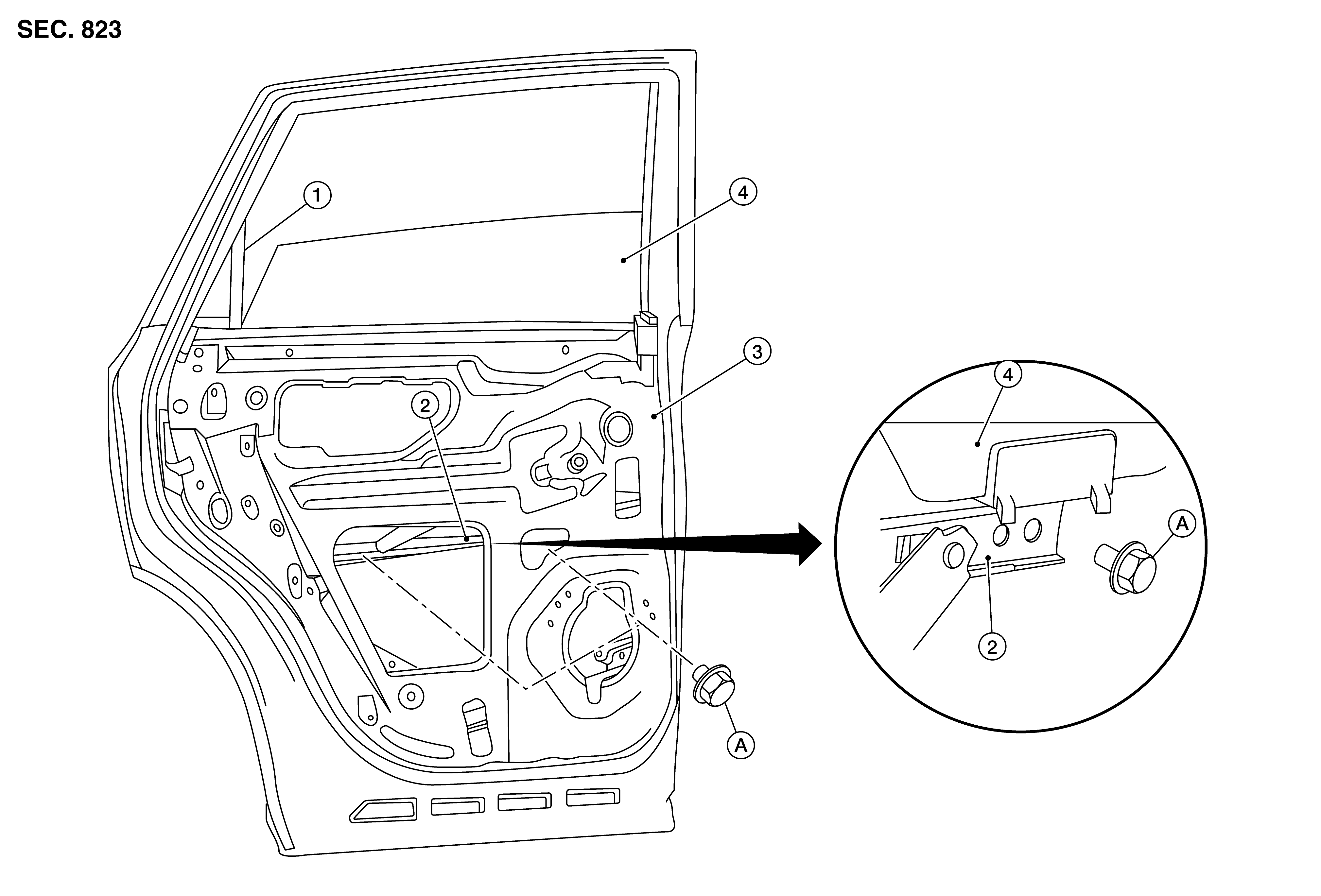

Exploded View
WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
1.
|
Rear door glass rear run channel
|
2.
|
Rear door glass regulator
|
3.
|
Rear door panel
|
|
4.
|
Rear door glass
|
A.
|
Rear door regulator to glass bolts
|
