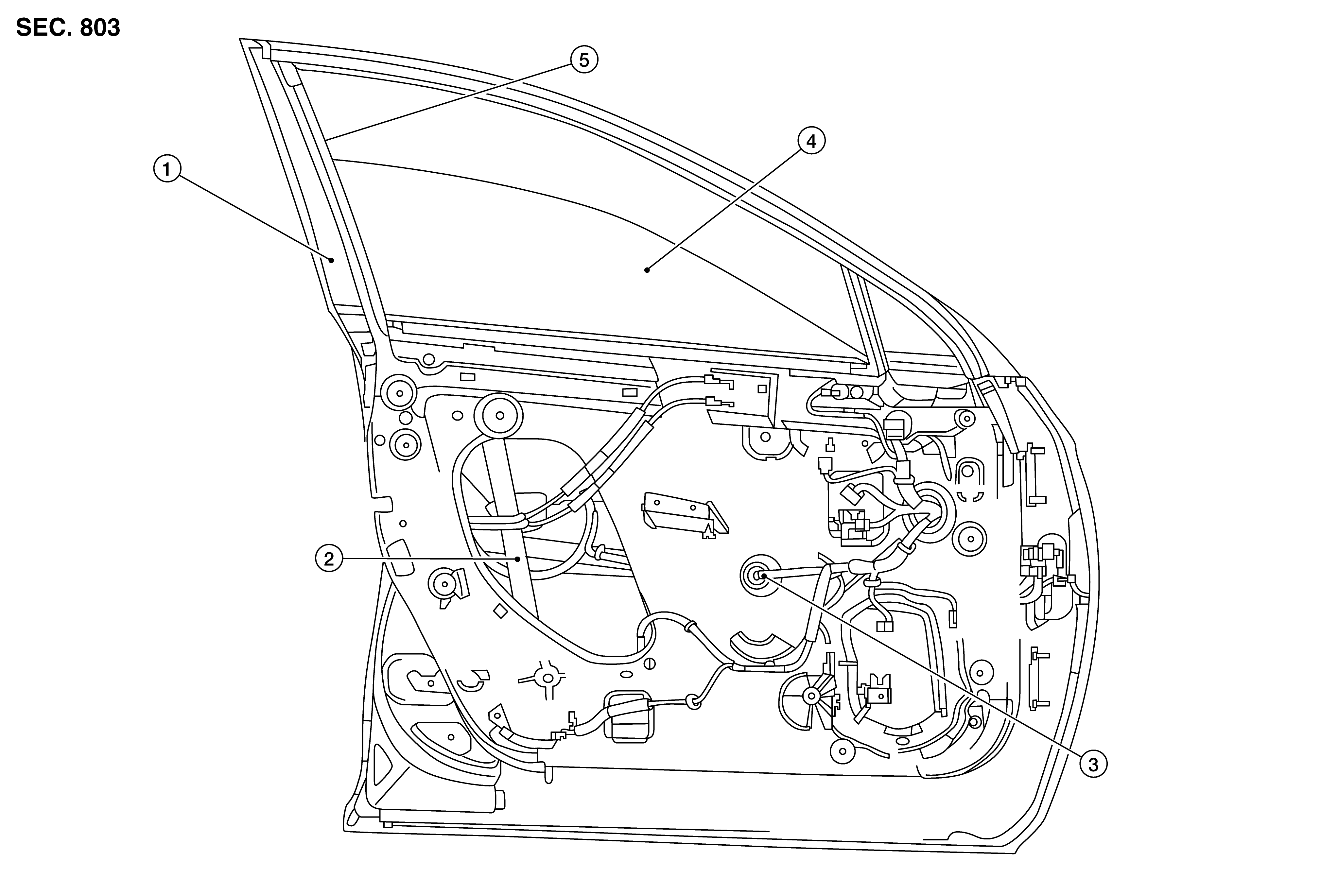

Exploded View

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
GNSALKIA2355Z-355Courtesy of NISSAN NORTH AMERICA, INC.

1.

Front door panel

2.

Front door glass regulator

3.

Harness connector

4.

Front door glass

5.

Front door glass rear run channel
