Vehicle Equipment Identification Information
WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Check CAN system type from the vehicle shape and equipment.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|

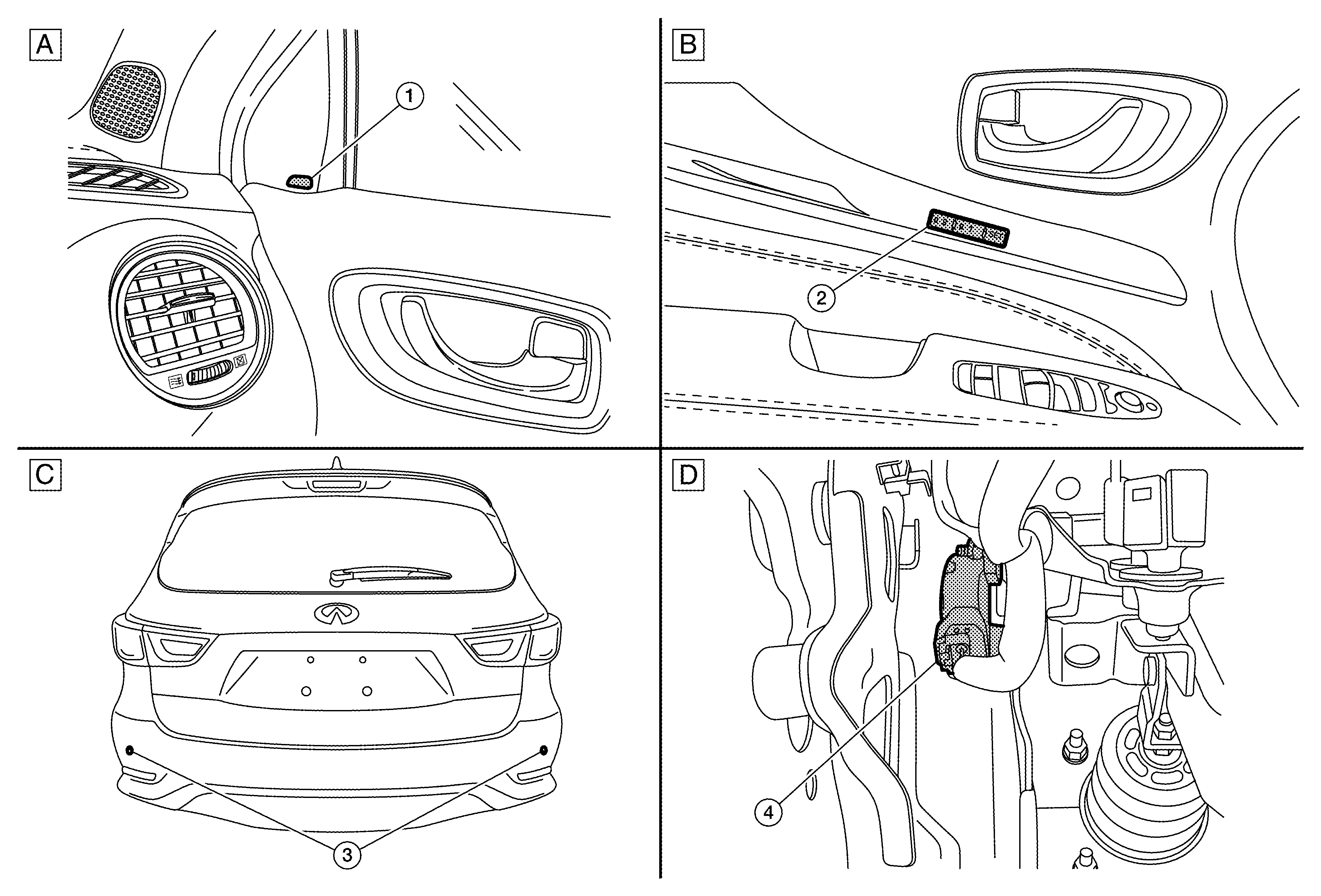

1.
|
BSW indicator RH
|
2.
|
Seat memory switches
|
3.
|
Sonar sensors
|
|
4.
|
Brake pedal stroke sensor (pedal periphery)
|
|
A.
|
With Blind Spot Warning system
|
B.
|
With automatic drive positioner
|
C.
|
With sonar system
|
|
D.
|
With pre-crash seat belt system
|
