Lane Camera Unit Handling
WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
To keep the proper operation of the LDW/LDP systems and prevent a system malfunction, be sure to observe the following:
- Always keep the windshield clean.
- Do not attach a sticker (including transparent material) or install an accessory near the lane camera unit.
- Do not place reflective materials, such as white paper or a mirror, on the instrument panel. The reflection of sunlight may adversely affect the lane camera unit capability of detecting the lane markers.
- Do not strike or damage the areas around the camera unit. Do not touch the camera lens or remove the screw located on the camera unit. If the camera unit is damaged due to an accident.
- For operating the system normally, replace the windshield glass in the following case.
- When there is a scratch on the area printed in black of windshield upper portion.
- When there is a scratch on the detecting range of lane camera unit or front camera unit. (the area within the lines extended from the notch of the area printed in black)

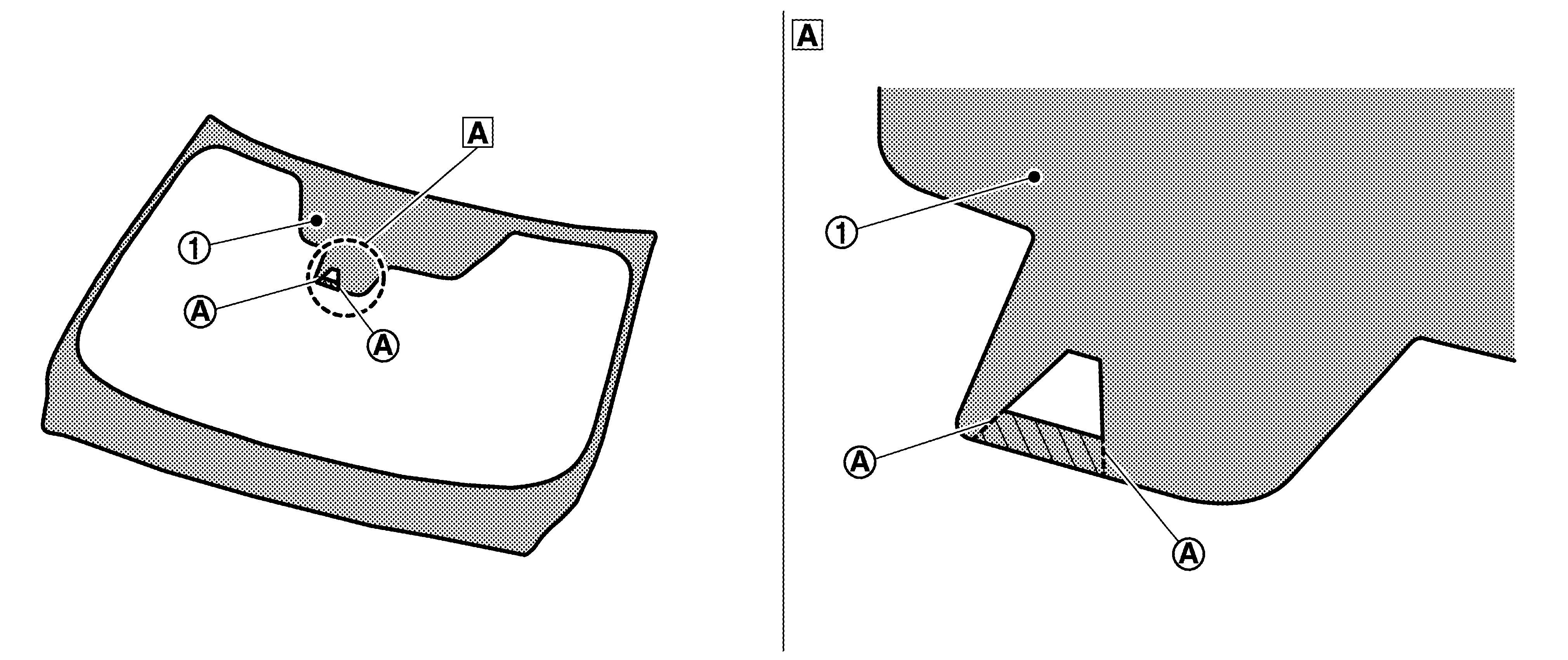

Area printed in black
Line extended from the notch of the area printed in black
Detail
The detecting range of front camera unit and lane camera unit
