Removal and Installation: Removal

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel. Refer to Removal and Installation .

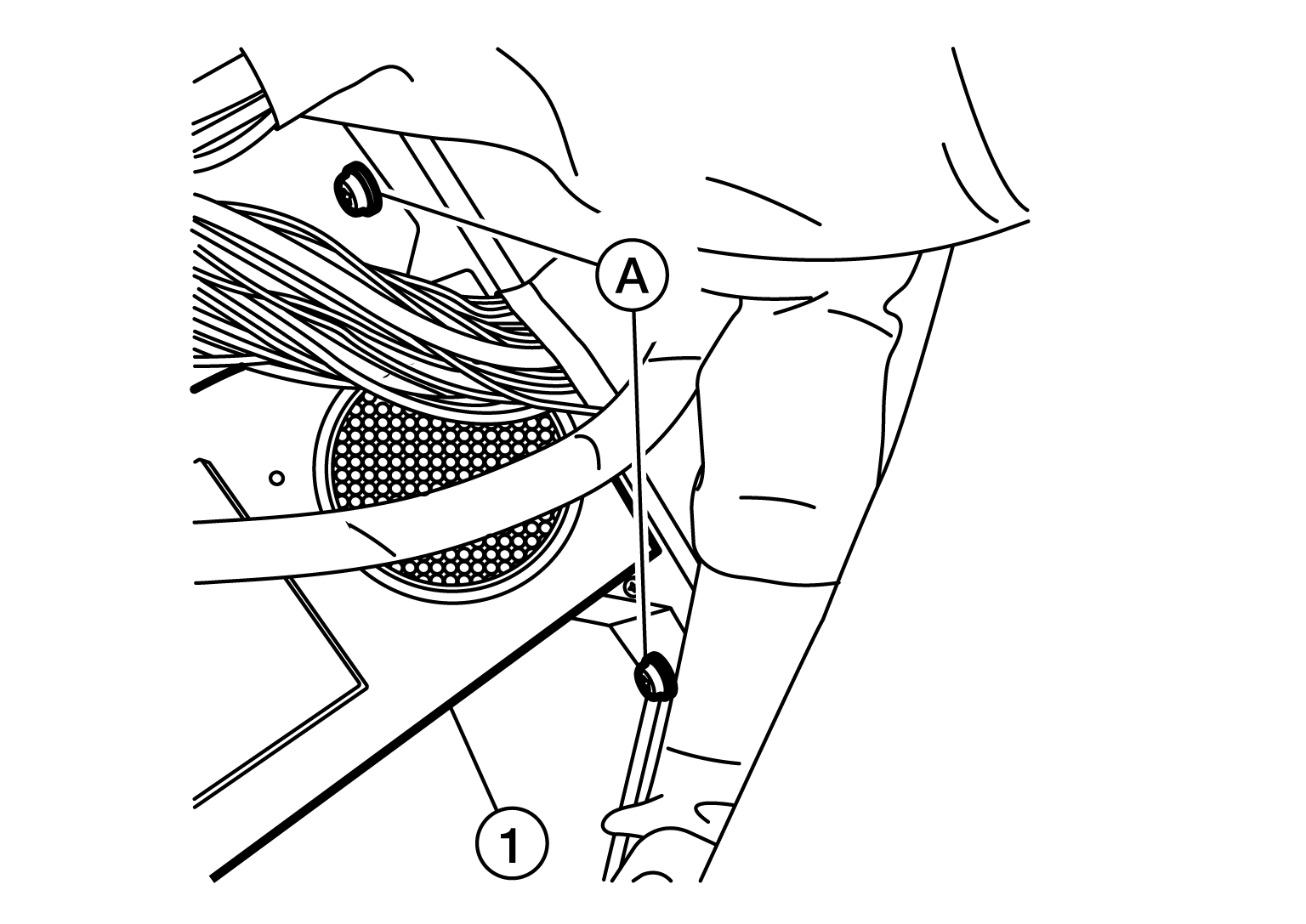

  2. Remove screws (A) from the warning buzzer (1).
    GNSALOIA0403Z-403Courtesy of NISSAN NORTH AMERICA, INC.
  3. Disconnect the harness connector from the warning buzzer.
  4. Remove the warning buzzer.
