Removal and Installation: Removal

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove luggage side lower finisher (LH). Refer to Removal and Installation .

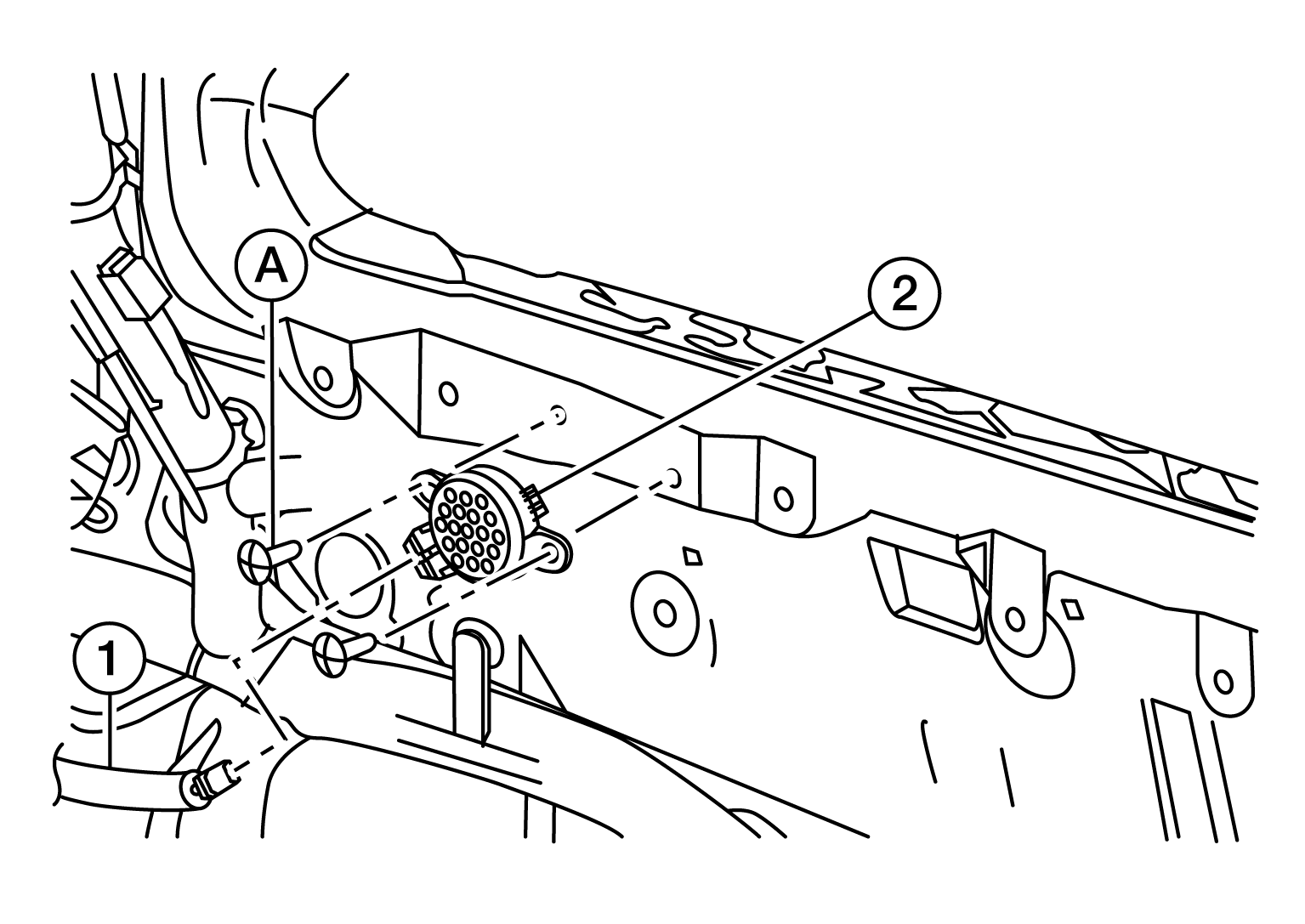

  2. Disconnect harness connector (1) from the sonar buzzer (2).
    GNSALNIA1334Z-334Courtesy of NISSAN NORTH AMERICA, INC.
  3. Remove sonar buzzer screws (A) and the sonar buzzer (2).
