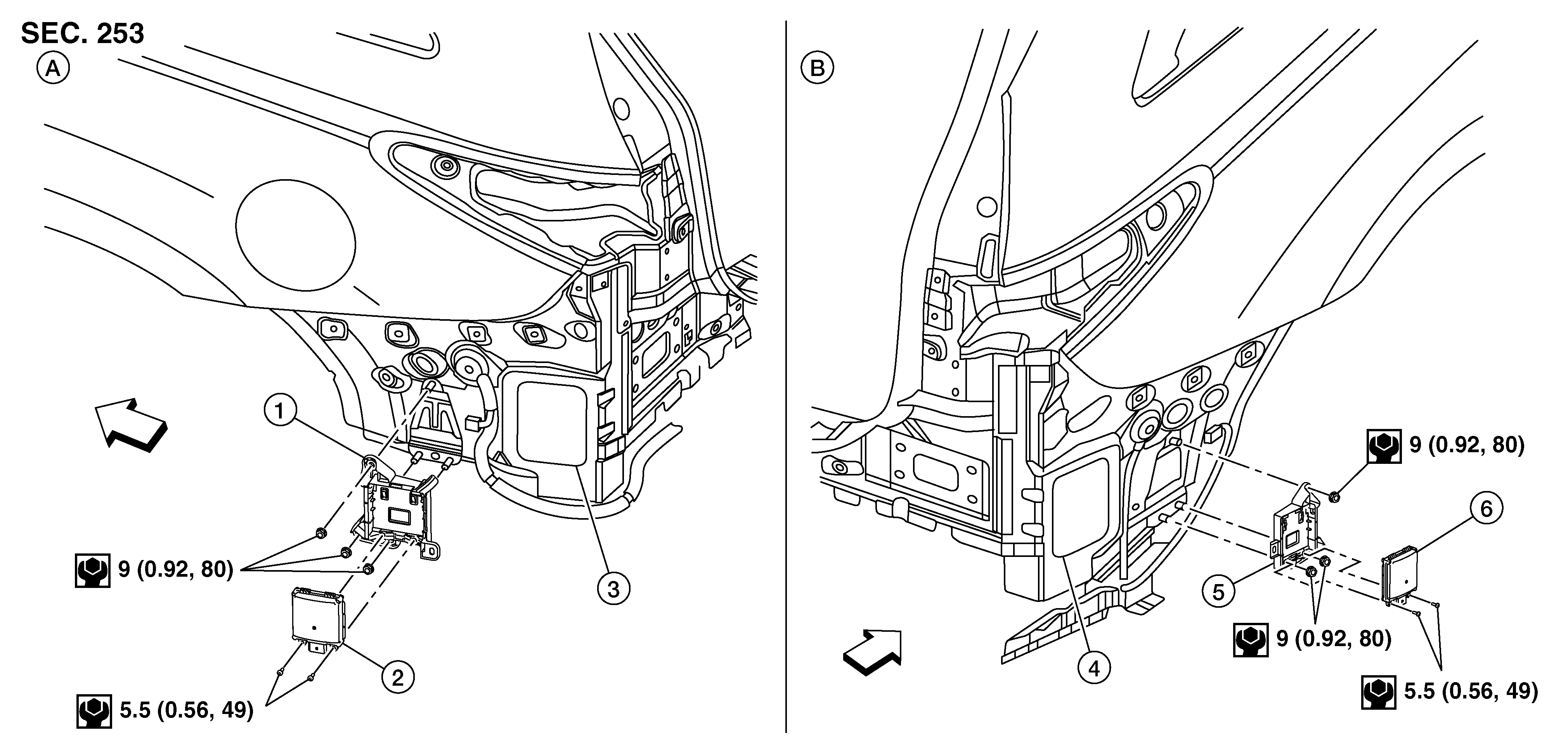

Exploded View
WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
|
1.
|
Retaining inner bracket (LH)
|
2.
|
Side radar (LH)
|
3.
|
Body side (LH)
|
|
4.
|
Body side (RH)
|
5.
|
Retaining inner bracket (RH)
|
6.
|
Side radar (RH)
|
|
A.
|
LH side
|
B.
|
RH side
|
|
|
Front
|
