Removal and Installation: Removal

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove back door outer upper finisher. Refer to Removal and Installation .

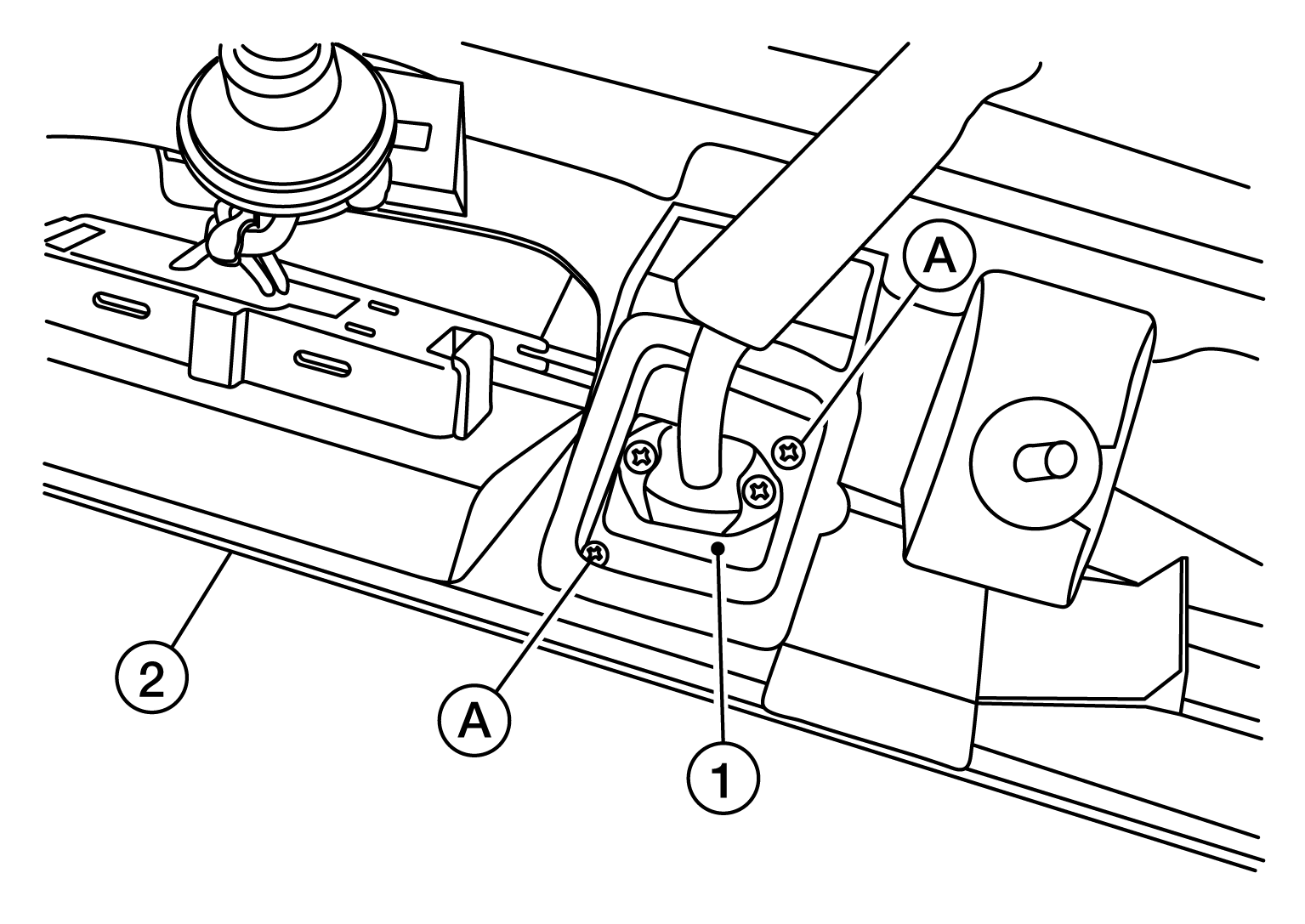

  2. Remove rear view camera screws (A), then remove rear view camera (1) from the back door outer upper finisher (2).
    GNSALNIA1427Z-427Courtesy of NISSAN NORTH AMERICA, INC.
