Removal and Installation: Removal
WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
- Release clips using suitable tool and remove the lane camera cover (LH).
- Release clips using suitable tool and remove the lane camera cover (RH).
- Release clips using suitable tool and remove the lane camera from the lane camera bracket.

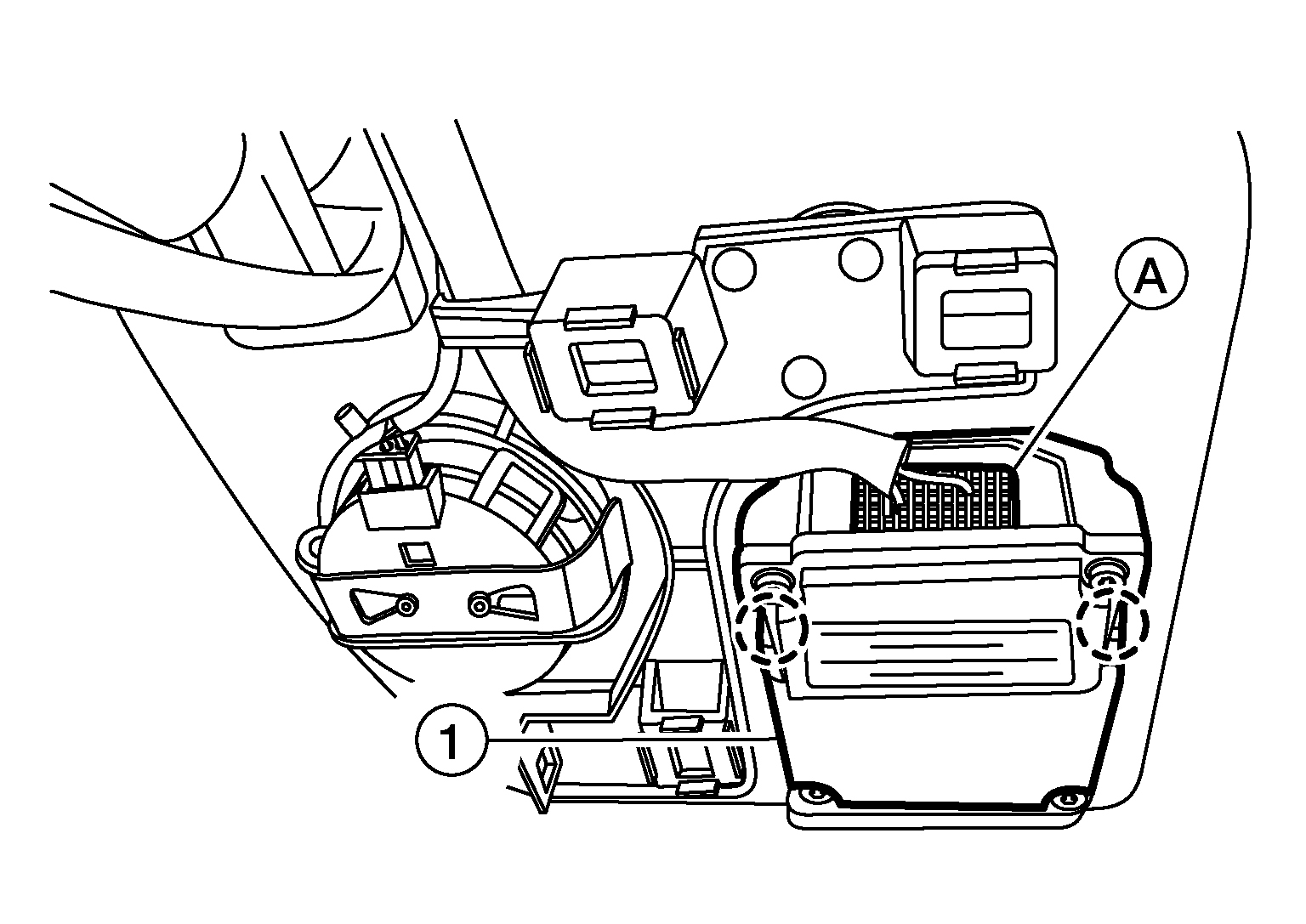

- Disconnect harness connector (A) from the lane camera (1) and remove.
: Pawl
