Removal and Installation: Removal

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The ICC steering and audio switches are serviced as an assembly.

Remove steering wheel. Refer to Removal and Installation .

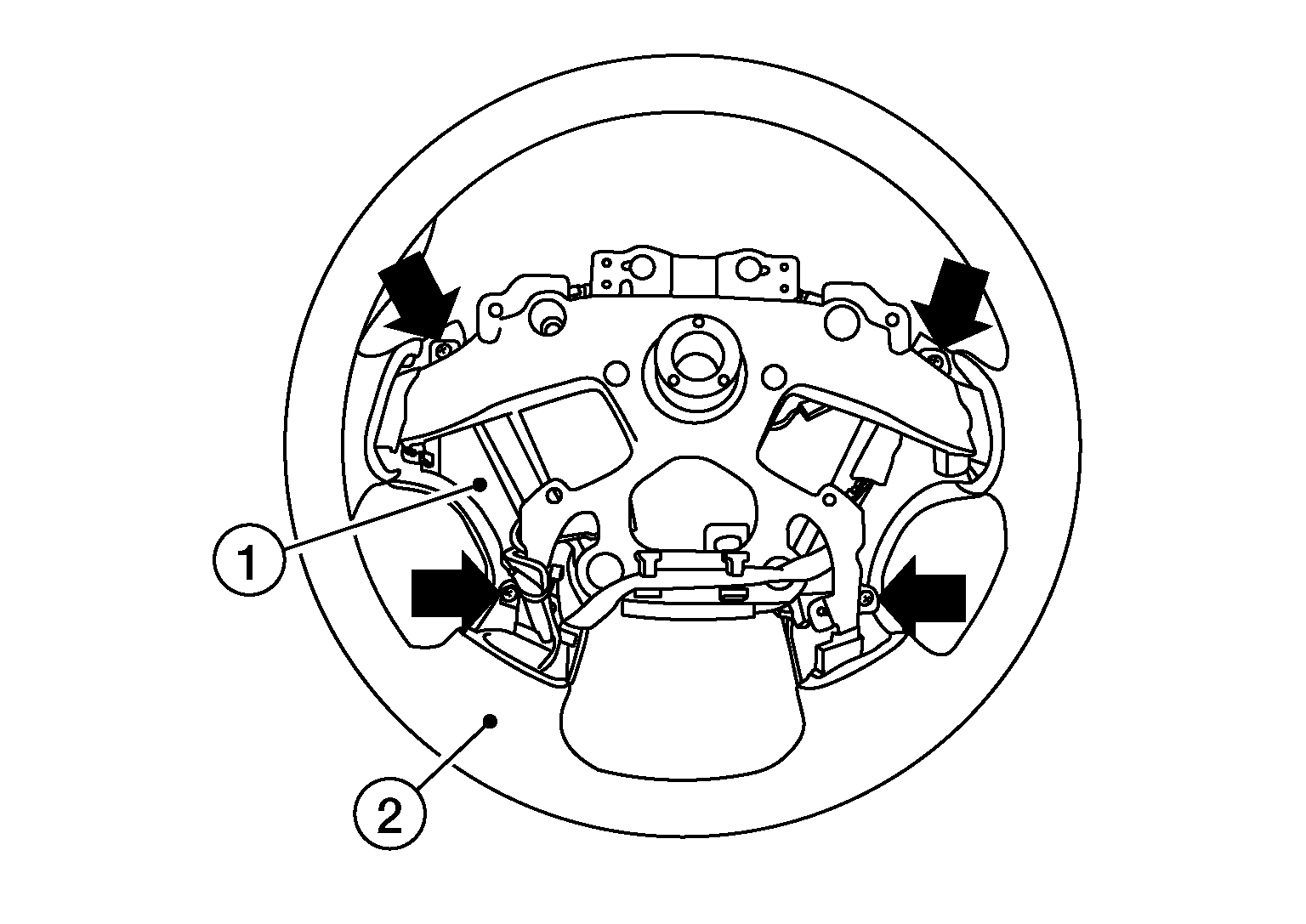

Release pawls ( ) and remove steering wheel rear finisher (1) from steering wheel (2).

Courtesy of NISSAN NORTH AMERICA, INC.
Remove ICC steering and audio switch assembly screws ( ).

Courtesy of NISSAN NORTH AMERICA, INC.
Remove ICC steering and audio switch assembly (1) from steering wheel (2).
