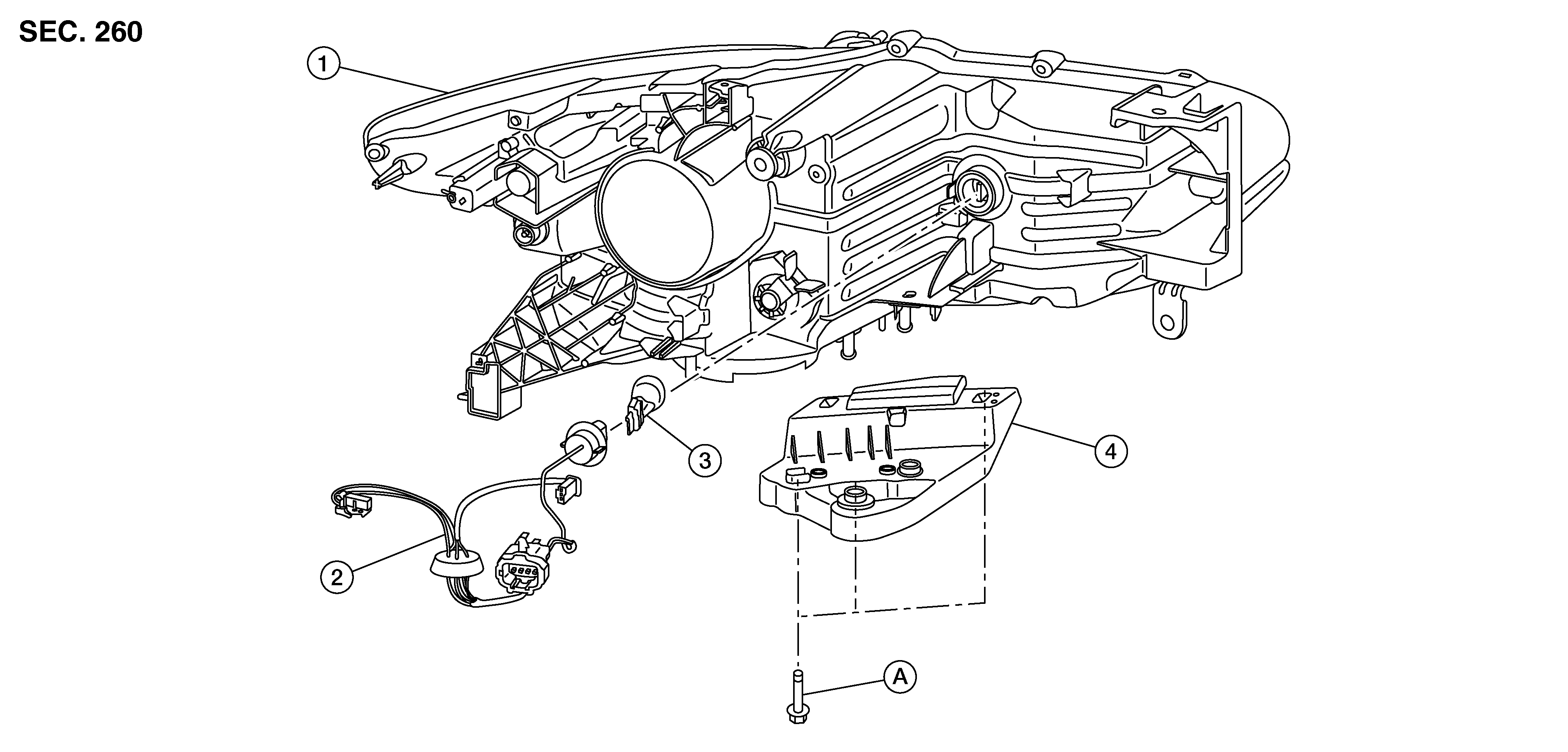

Exploded View
WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
1.
|
Front combination lamp
|
2.
|
Front combination lamp harness
|
3.
|
Front turn signal lamp bulb
|
|
4.
|
Bumper fascia retainer bracket
|
A.
|
Screw
|
