Exploded View

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

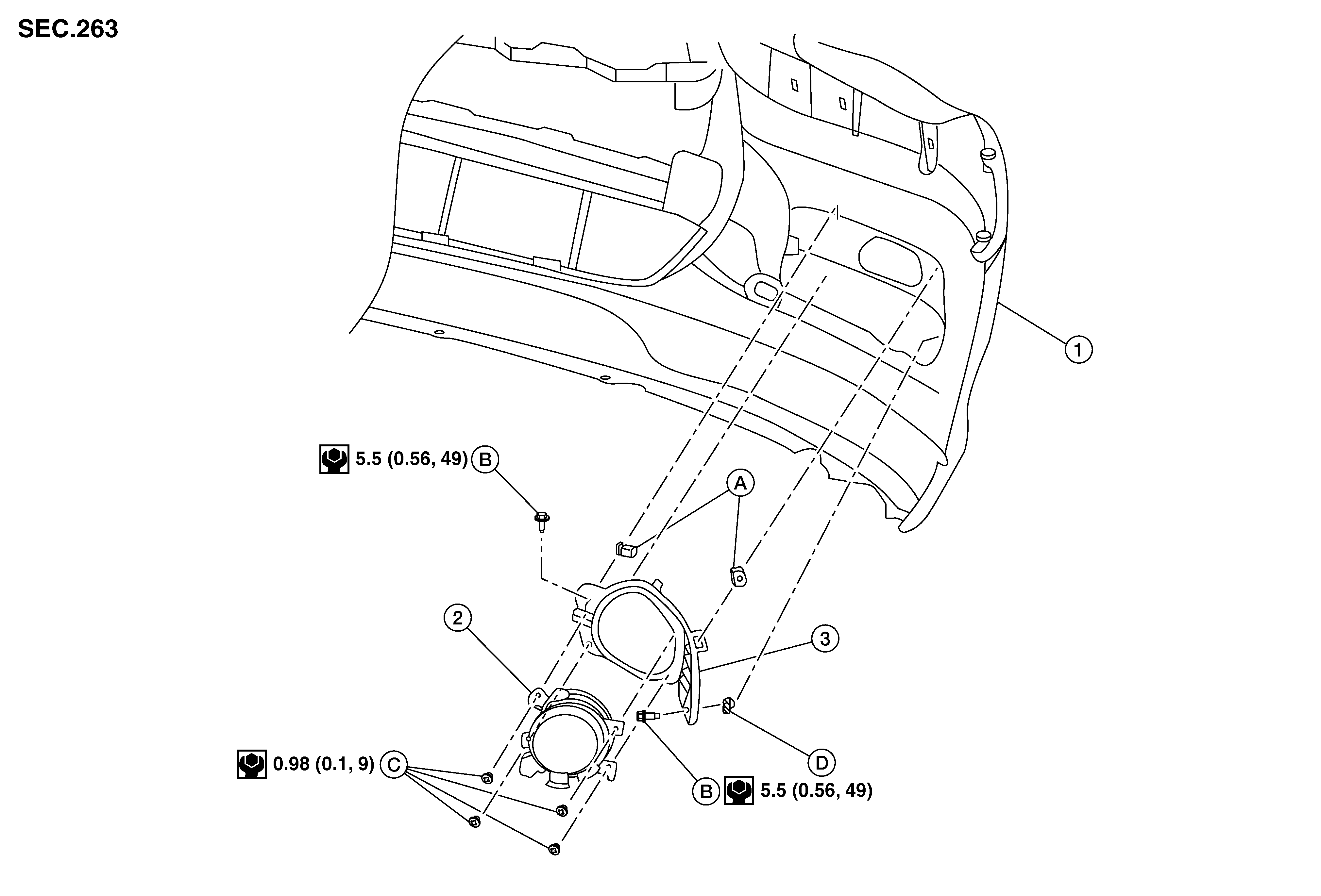

Fig 1: Front Fog Lamp Components With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Front bumper fascia	2.	Front fog lamp	3.	Front fog bracket
A.	Clip	B.	Bolt	C.	Screw
D.	Nut
