Aiming Adjustment Procedure
WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
|

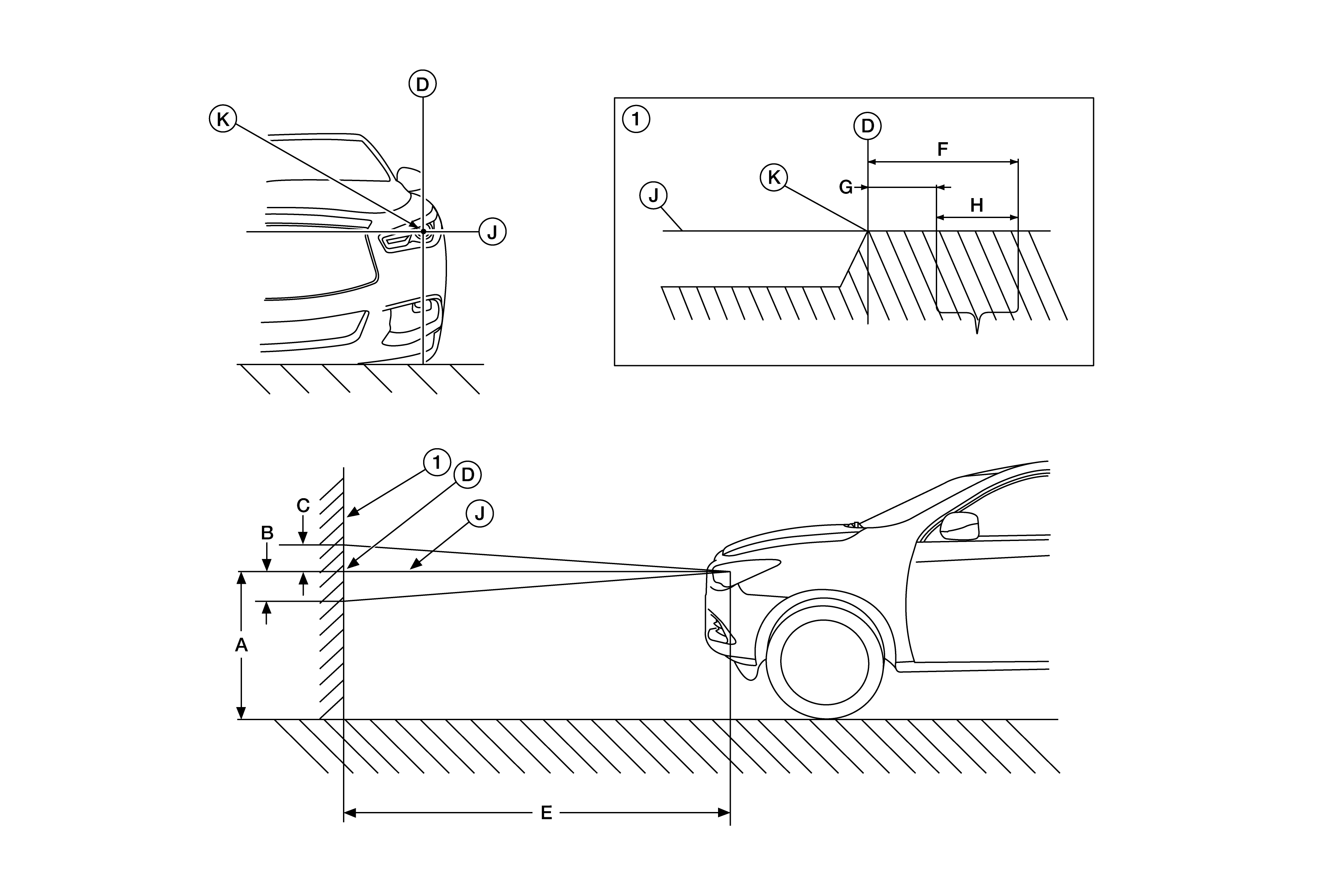

1. |
Adjustment screen |
A. |
Distance of horizontal aiming evaluation line from ground |
B. |
Minimum cutoff line height |
|
C. |
Maximum cutoff line height |
D. |
Vertical aiming evaluation line |
E. |
7.6 m (25 ft) |
|
F. |
Maximum aim evaluation distance from vertical center on aiming screen 399 mm (15.7 in) [3 deg.R] |
G. |
Minimum aim evaluation distance from vertical center on aiming screen 133 mm (5.24 in) [1 deg.R] |
H. |
Aim evaluation area |
|
J. |
Horizontal aiming evaluation line |
K. |
Center of headlamp bulb |
|
A (Highest cutoff line height) |
7 mm (0.28 in) |
0.05 deg. up |
|
B (Lowest cutoff line height) |
7 mm (0.28 in) |
0.05 deg. down |
LOW BEAM AND HIGH BEAM
NOTE:
- Basic illuminating area for evaluation and/or adjustment should be within range shown on aiming chart.
- Use adjustment screw to perform aiming adjustment.
- Ensure fog lamps are turned off.
- Block the opposite headlamp from projecting a beam pattern onto the adjustment screen, using a suitable object. Aim each headlamp individually.CAUTION: Do not cover the lens surface with a tape etc. The lens is made of resin.
- Place the screen on the same level and flat surface as the vehicle.NOTE:
- Surface should be free of any debris that would cause a difference between the headlamp center and the adjustment screen.
- Face the front of the vehicle to the screen and measure distance between the headlamp center and the screen surface.
Distance between the headlamp center and the screen (D)
: 7.62 m (25 ft)
- Start the engine. Turn the headlamp on.
- Determine the preferred vertical aim range dimensions, using the aiming chart.
- Measure the projected beam within the aim evaluation segment on the screen.
- Adjust the beam pattern of each headlamp until the aim evaluation segment (the area relative to both the highest and lowest cutoff line height) is positioned within the vertical aim range dimensions shown on the aiming chart.
