Antenna Feeder

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

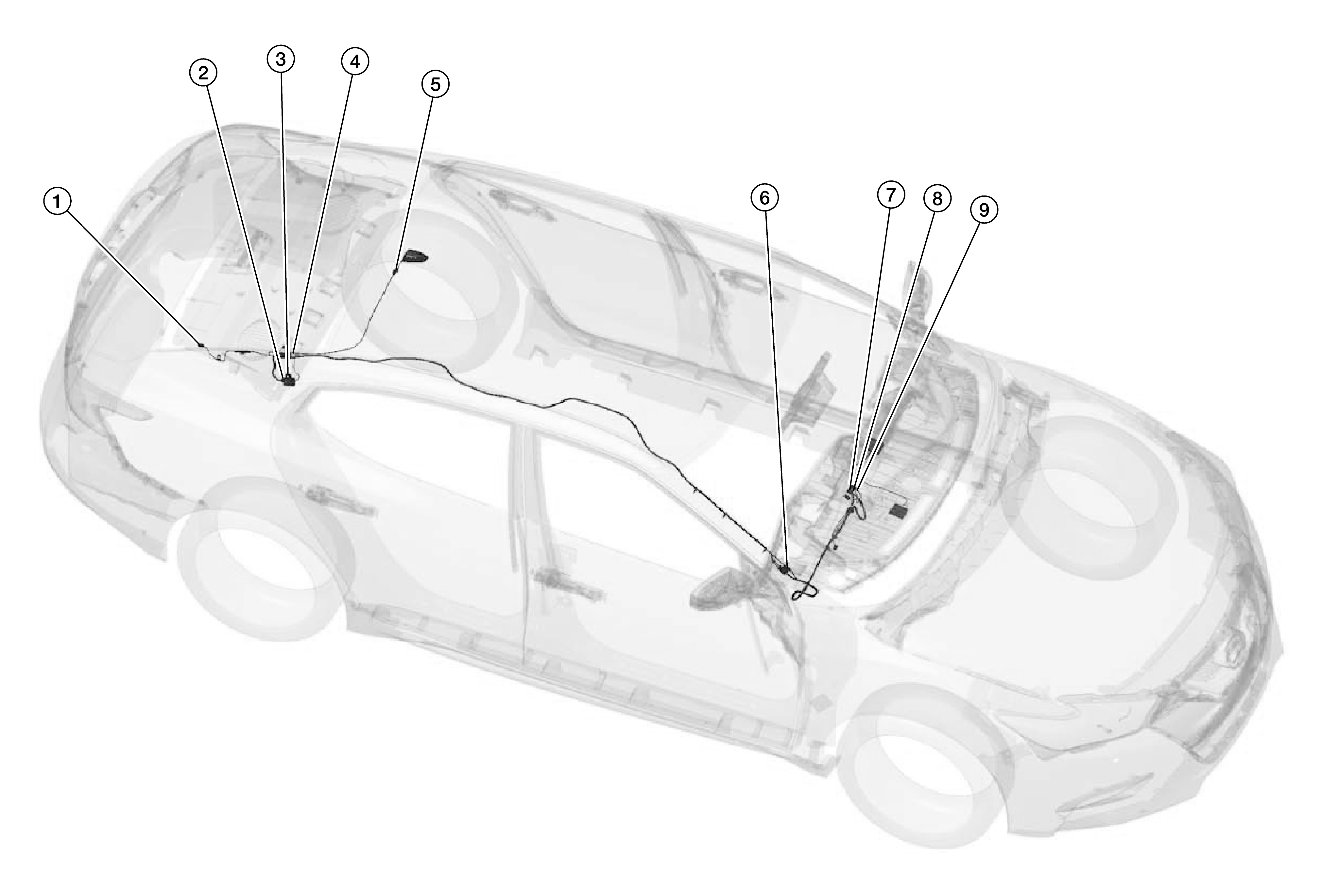

GNSAWNIA4428Z-428Courtesy of NISSAN NORTH AMERICA, INC.

1.

R203

2.

R202

3.

Antenna amp.

4.

R204, R205

5.

R206

6.

R200, R201, M198, M199

7.

M166

8.

M165

9.

M167
