Exploded View

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

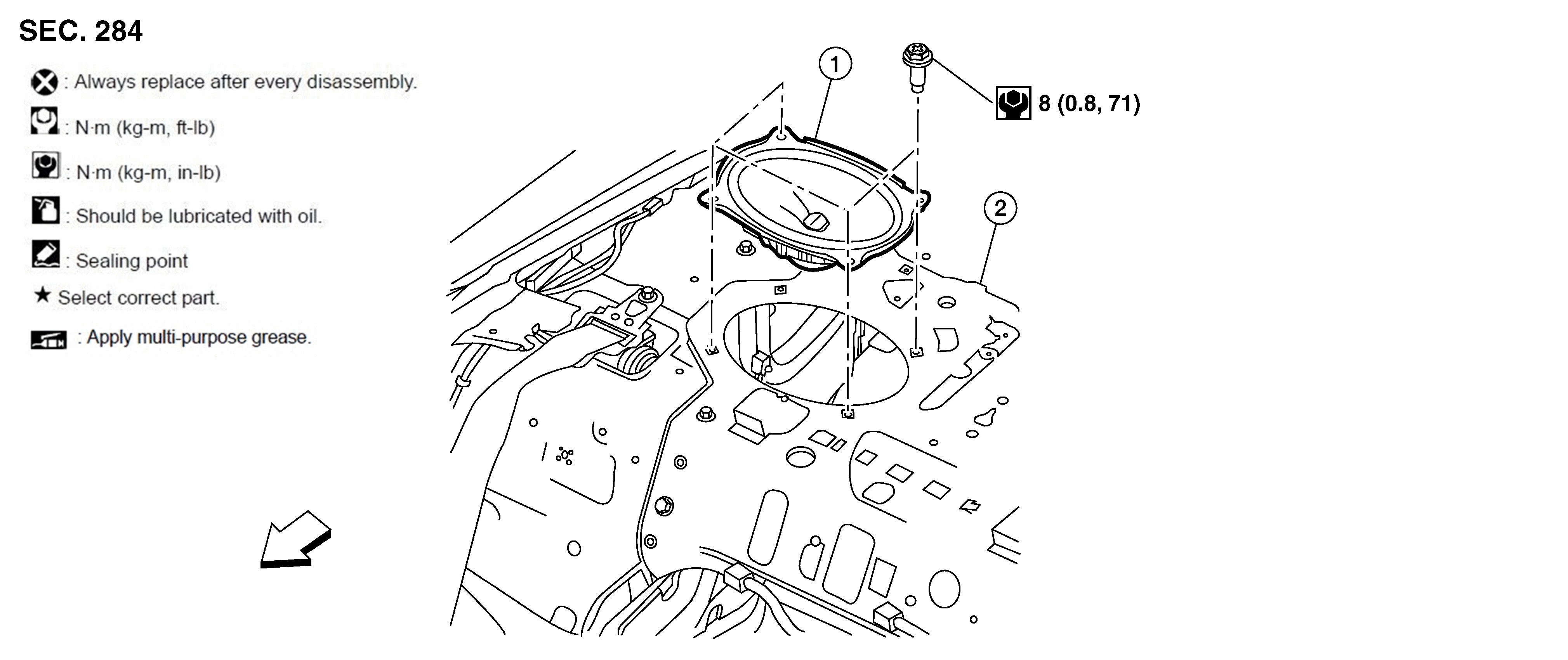

Fig 1: Subwoofer Replacement Components With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

Rear subwoofer

Rear parcel shelf

Front

NOTE: RH shown, LH similar.
