Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove rear door finisher. Refer to Removal and Installation .

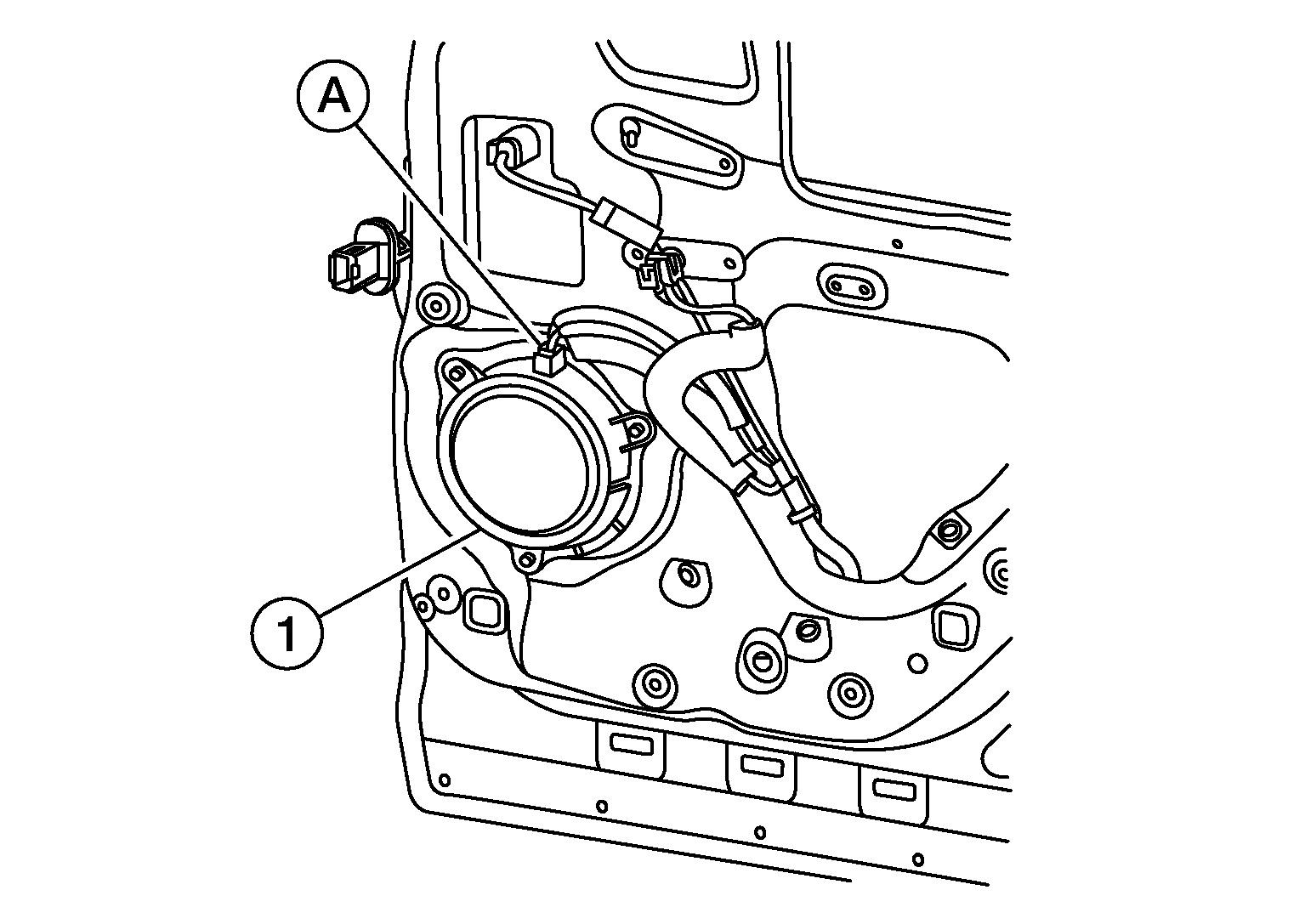

  2. Remove screws (A) then remove rear door speaker (1).
    GNSALNIA1684Z-684Courtesy of NISSAN NORTH AMERICA, INC.
    NOTE: RH shown, LH similar.
