Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove door mirror corner finisher. Refer to Exploded View .

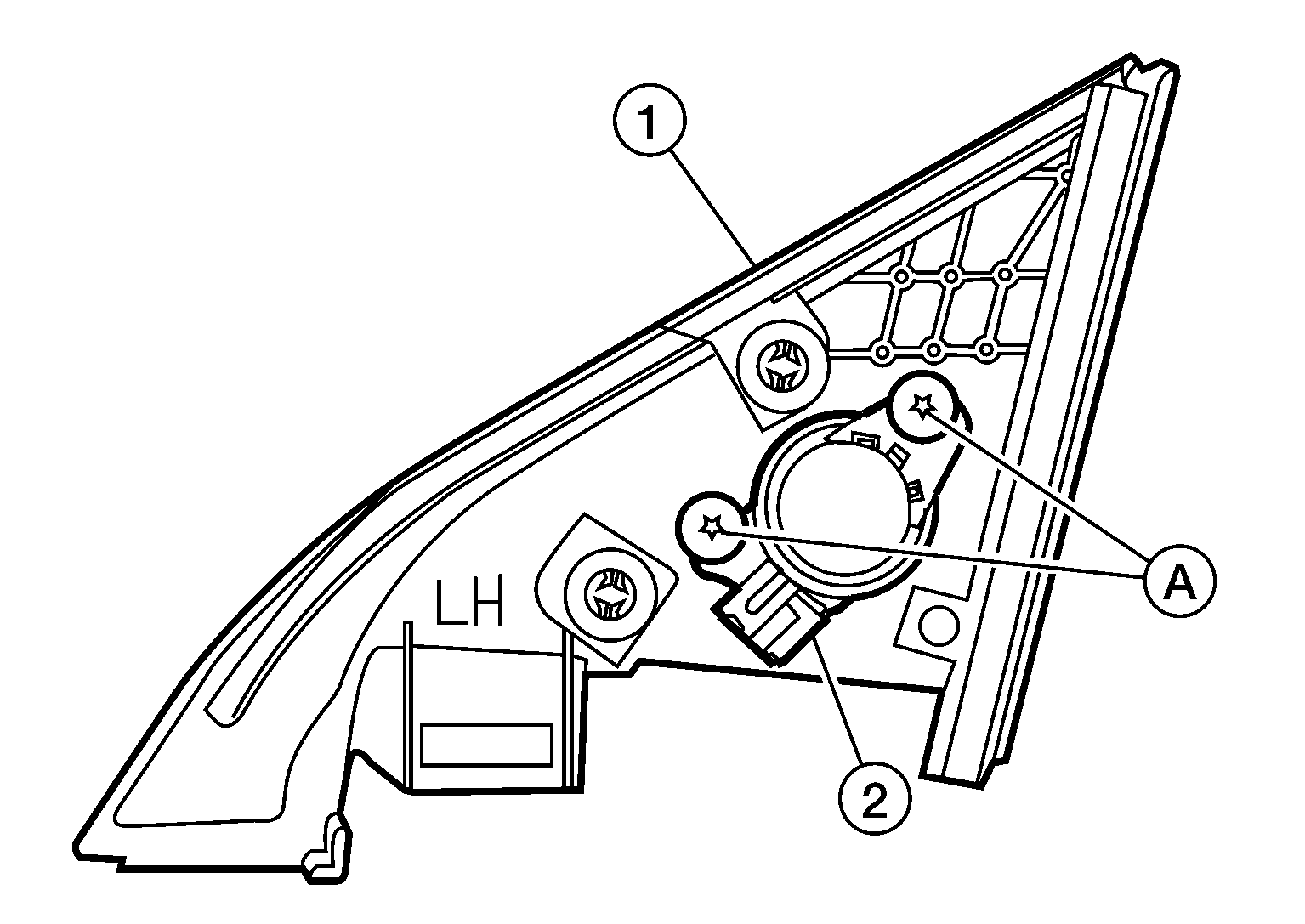

  2. Remove screws (A) and remove front tweeter (1) from door mirror corner finisher (2).
    GNSALNIA1737Z-737Courtesy of NISSAN NORTH AMERICA, INC.
