Exploded View

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

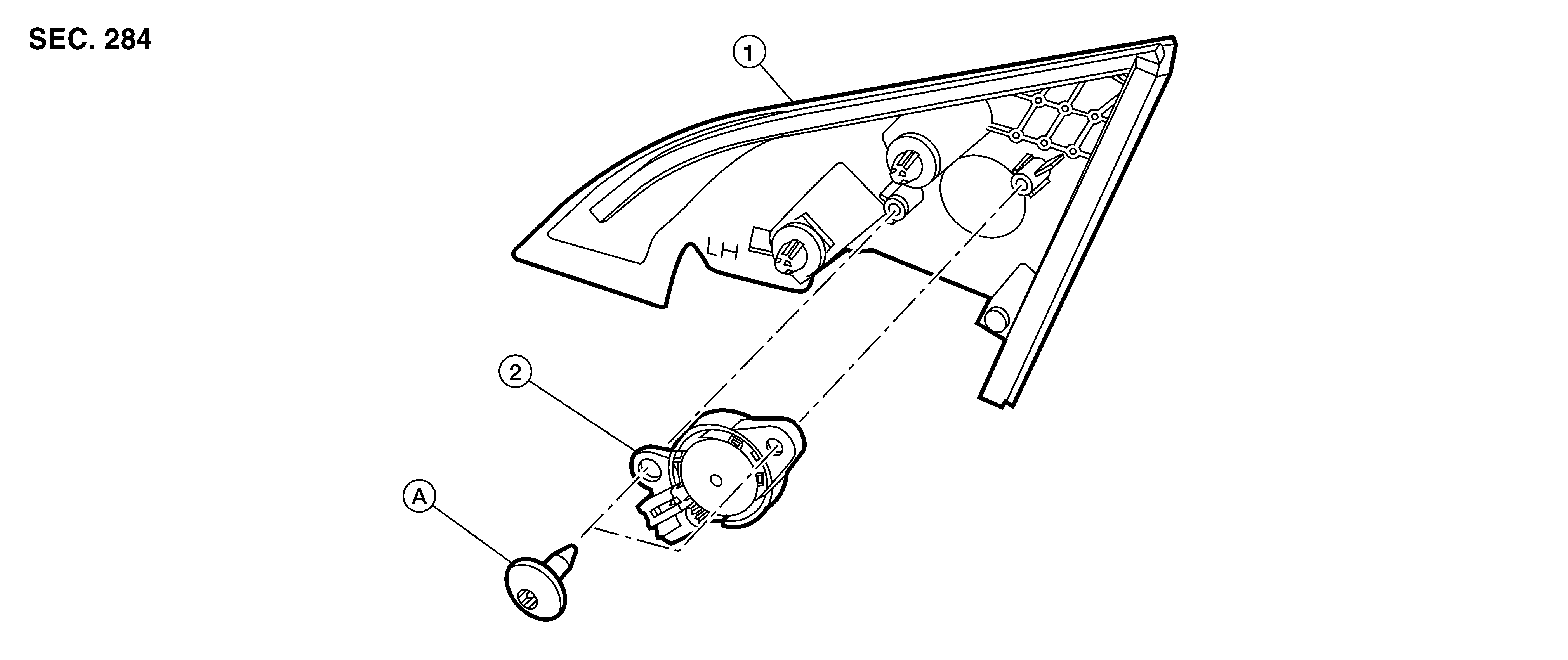

GNSALNIA1742Z-742Courtesy of NISSAN NORTH AMERICA, INC.

1.

Door mirror corner finisher

2.

Front tweeter

A.

Screw
NOTE: LH shown, RH similar.
