Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove front door finisher. Refer to Removal and Installation .

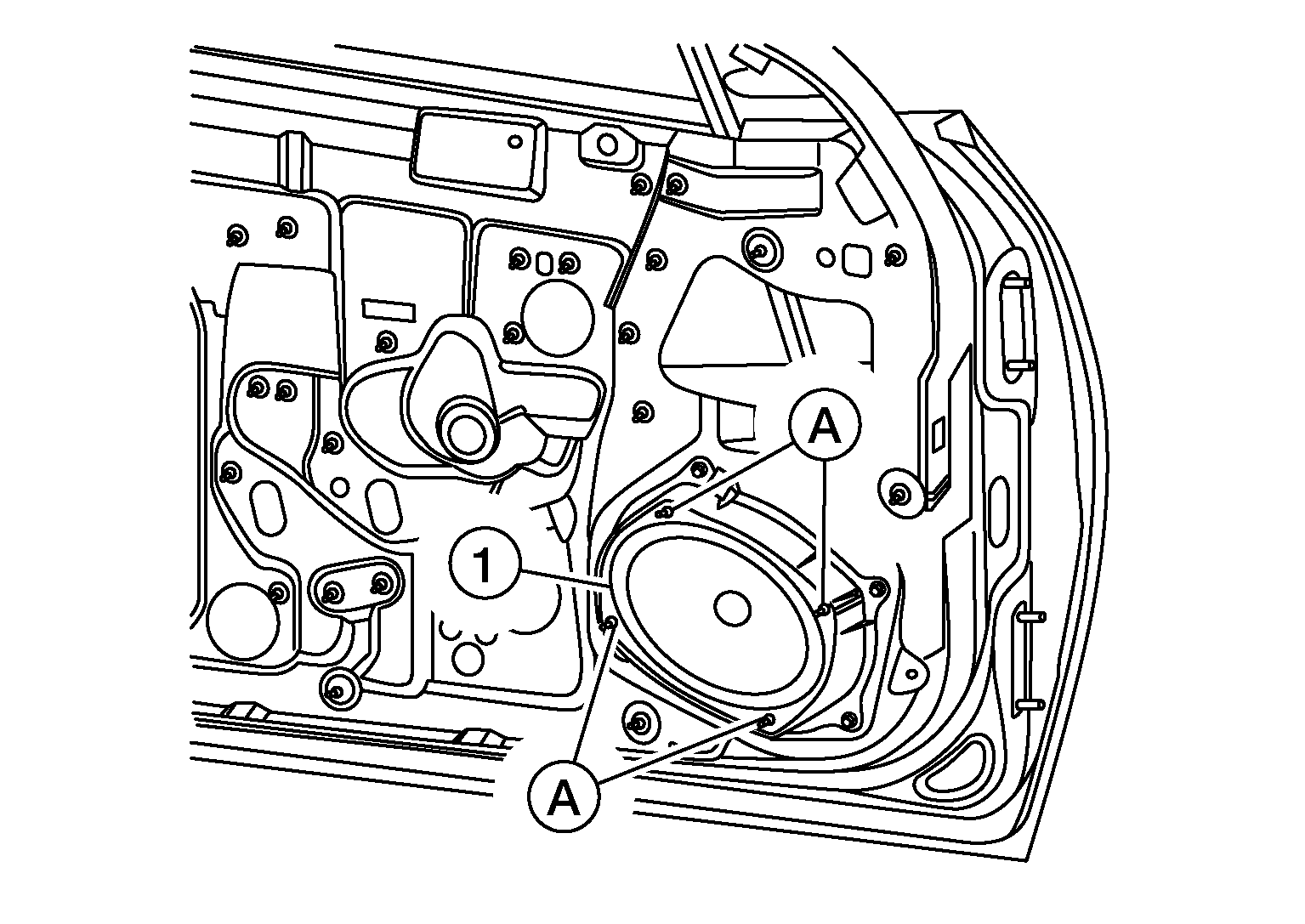

  2. Remove screws (A) and pull out front door speaker (1).
    GNSALNIA1727Z-727Courtesy of NISSAN NORTH AMERICA, INC.
    NOTE: LH shown, RH similar.
  3. Disconnect the harness connector from front door speaker and remove.
