Exploded View

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

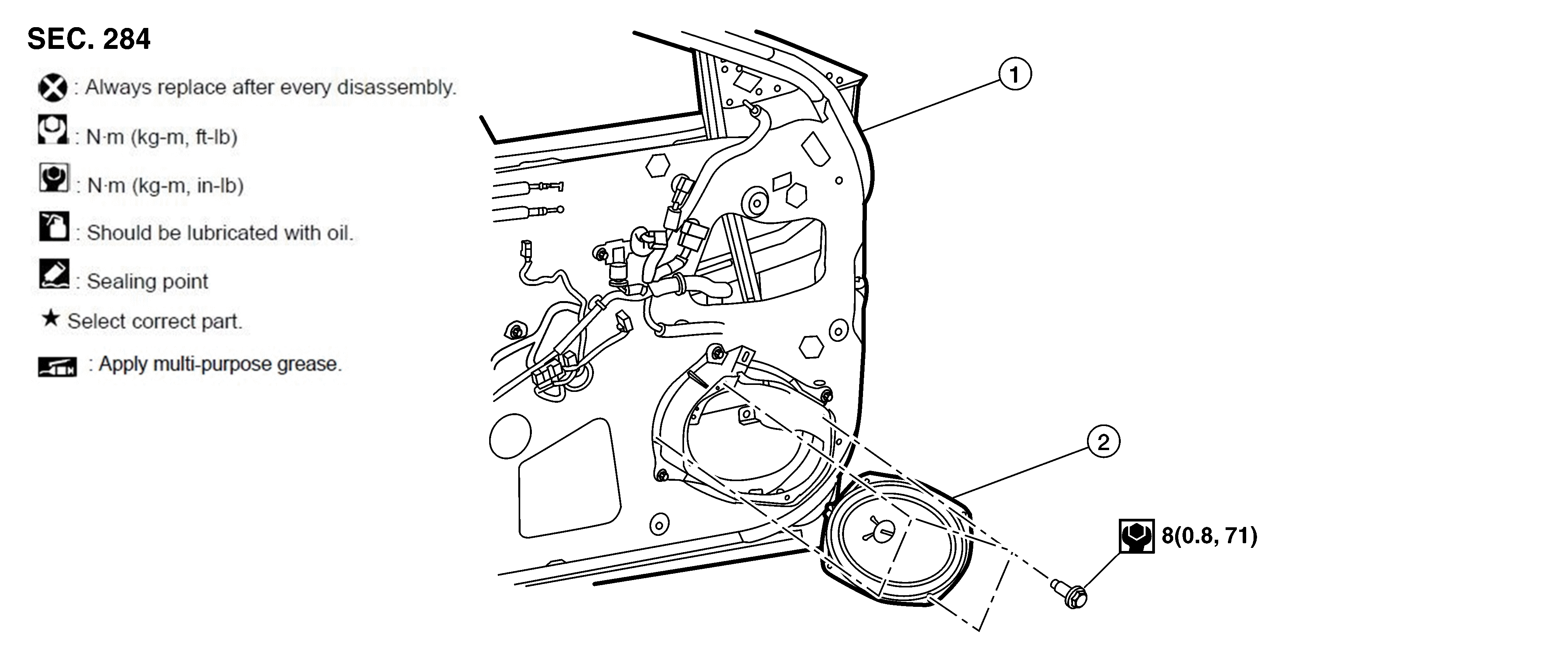

Fig 1: Front Door Speaker Replacement Components With Torque Specifications
GNSALNIA1743Z-743Courtesy of NISSAN NORTH AMERICA, INC.

1.

Front door finisher

2.

Front door speaker
NOTE: LH shown, RH similar.
