Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove rear parcel shelf finisher. Refer to Removal and Installation .

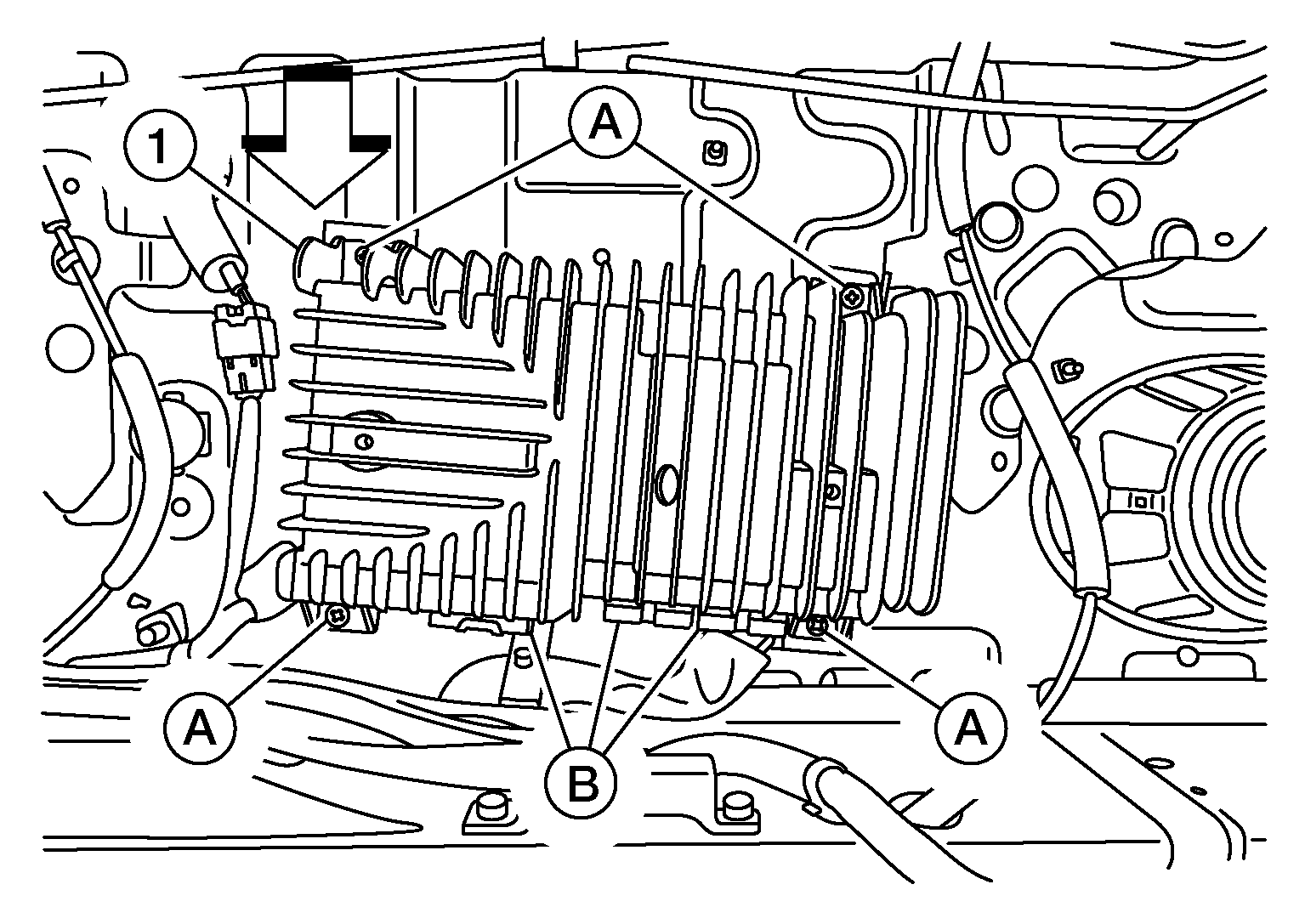

  2. Disconnect the harness connector (B) from the BOSE speaker amp. (1).
    GNSALNIA1745Z-745Courtesy of NISSAN NORTH AMERICA, INC.
  3. Remove bolts (A) then remove BOSE speaker amp.
  4. Remove BOSE speaker amp. bracket (if necessary).
