Exploded View

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

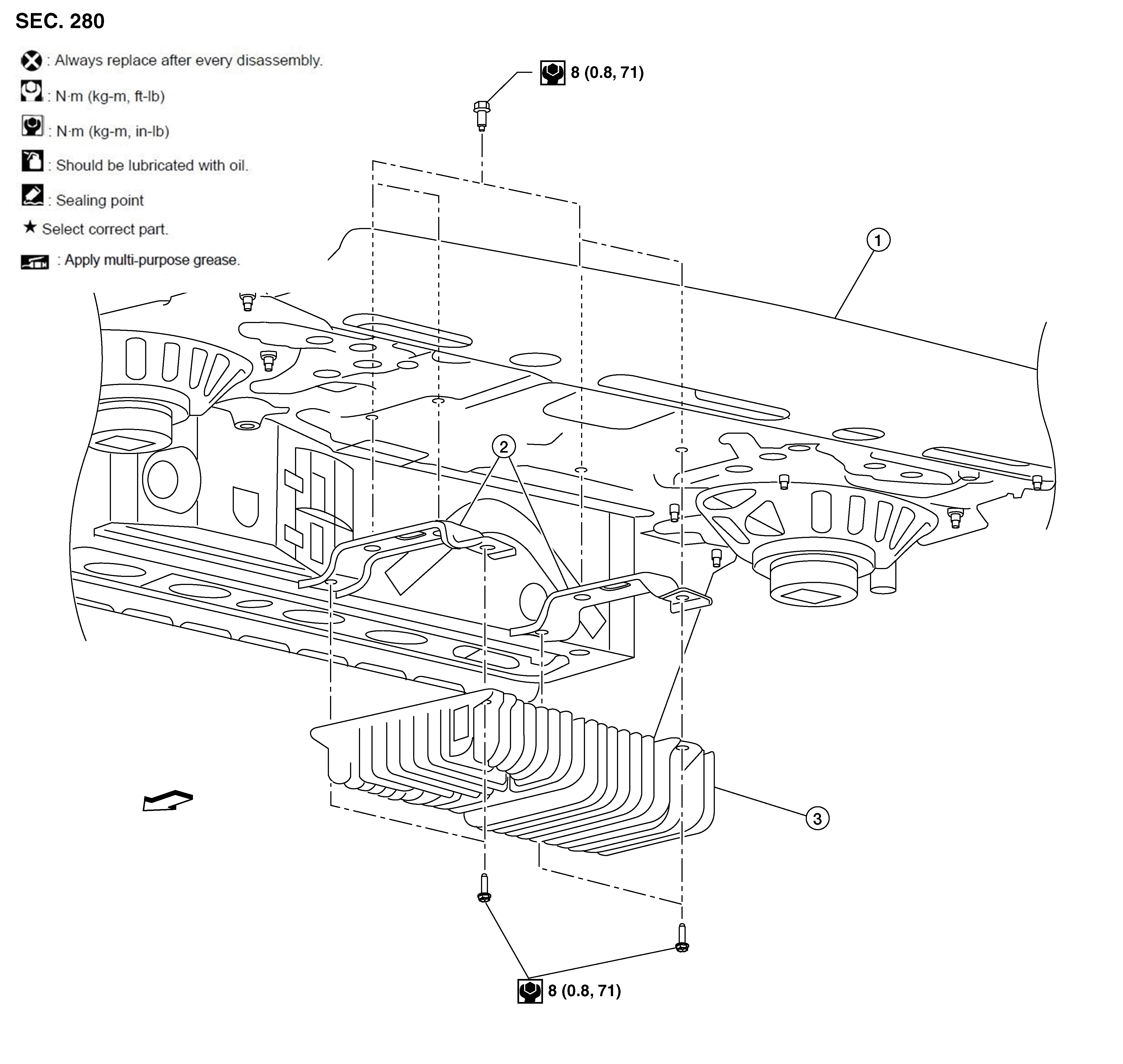

Fig 1: BOSE Speaker Amp Replacement Components With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Rear parcel shelf	2.	BOSE speaker amp. bracket	3.	BOSE speaker amp.
	Front
