Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove rear pillar finisher (RH). Refer to Removal and Installation .

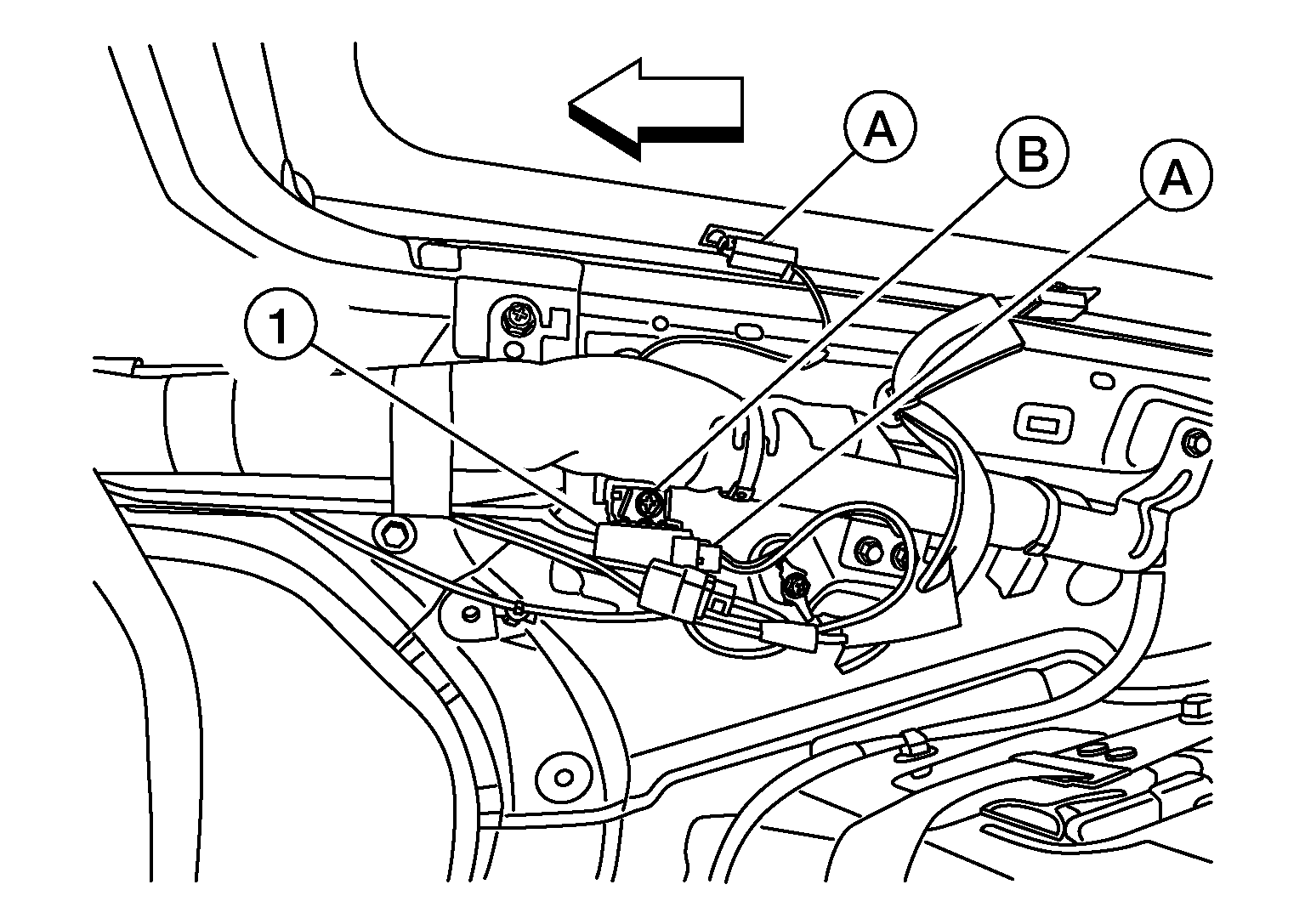

  2. Disconnect the harness connectors (A) from the antenna amp. (1).
    GNSALNIA1747Z-747Courtesy of NISSAN NORTH AMERICA, INC.
  3. Remove bolt (B) and remove.

    SYMBOL

    : Front
