Removal and Installation - Front: Removal

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the headlining. Refer to Removal and Installation .
  2. Disconnect the harness connectors (A) from the active noise control microphones (1, 2).

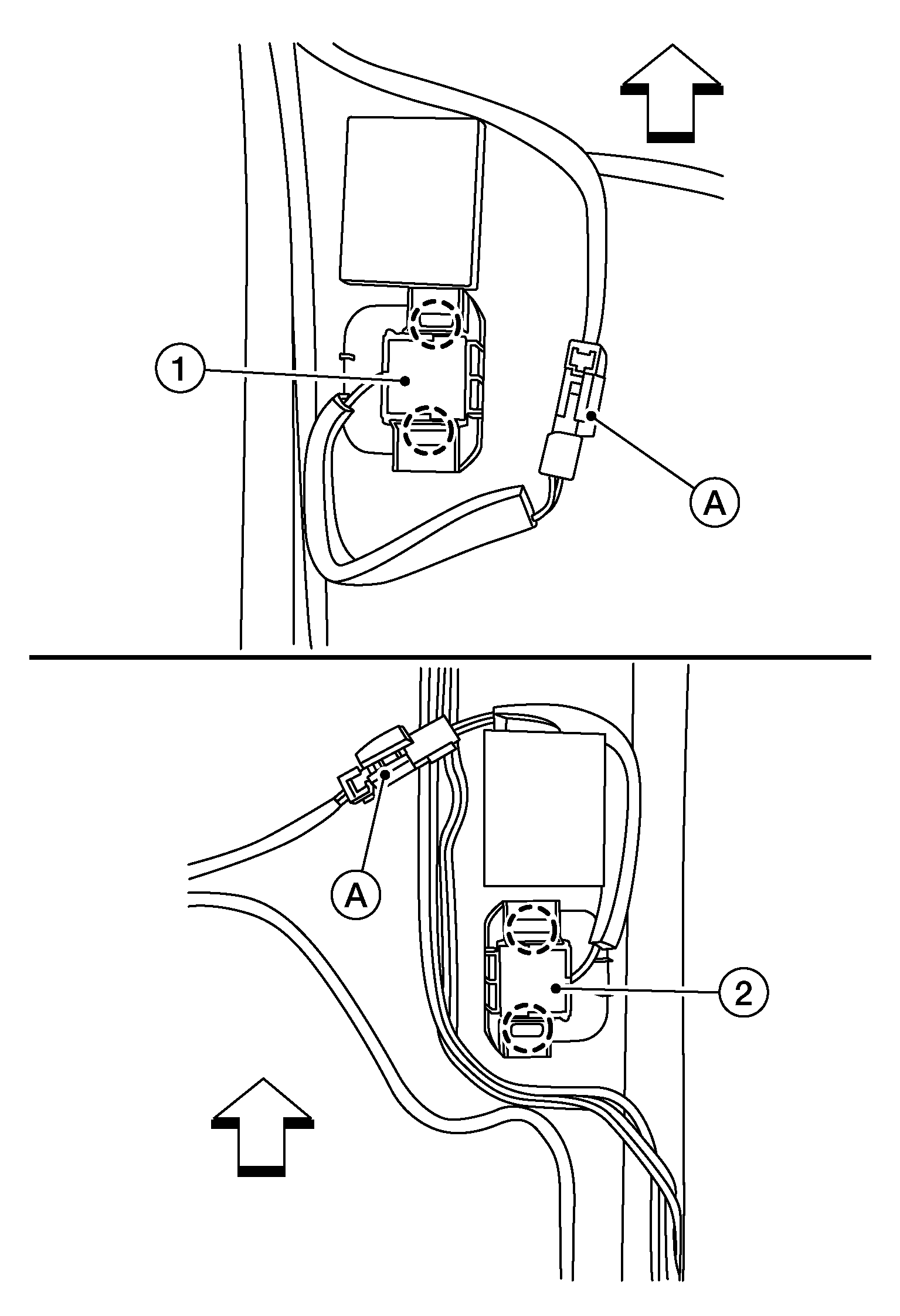

    GNSALNIA1776Z-776Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Pawl

    SYMBOL

    : Front
  3. Release the pawls, then remove the active noise control microphones (1, 2) from the headlining.
    CAUTION: Carefully handle the pawls that retain the microphone to avoid damaging.
