Work Procedure

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

RECORD REGISTRATION CODE FOR REPLACEMENT AV CONTROL UNIT

Refer to the replacement AV control unit's label located on the top of the AV control unit.

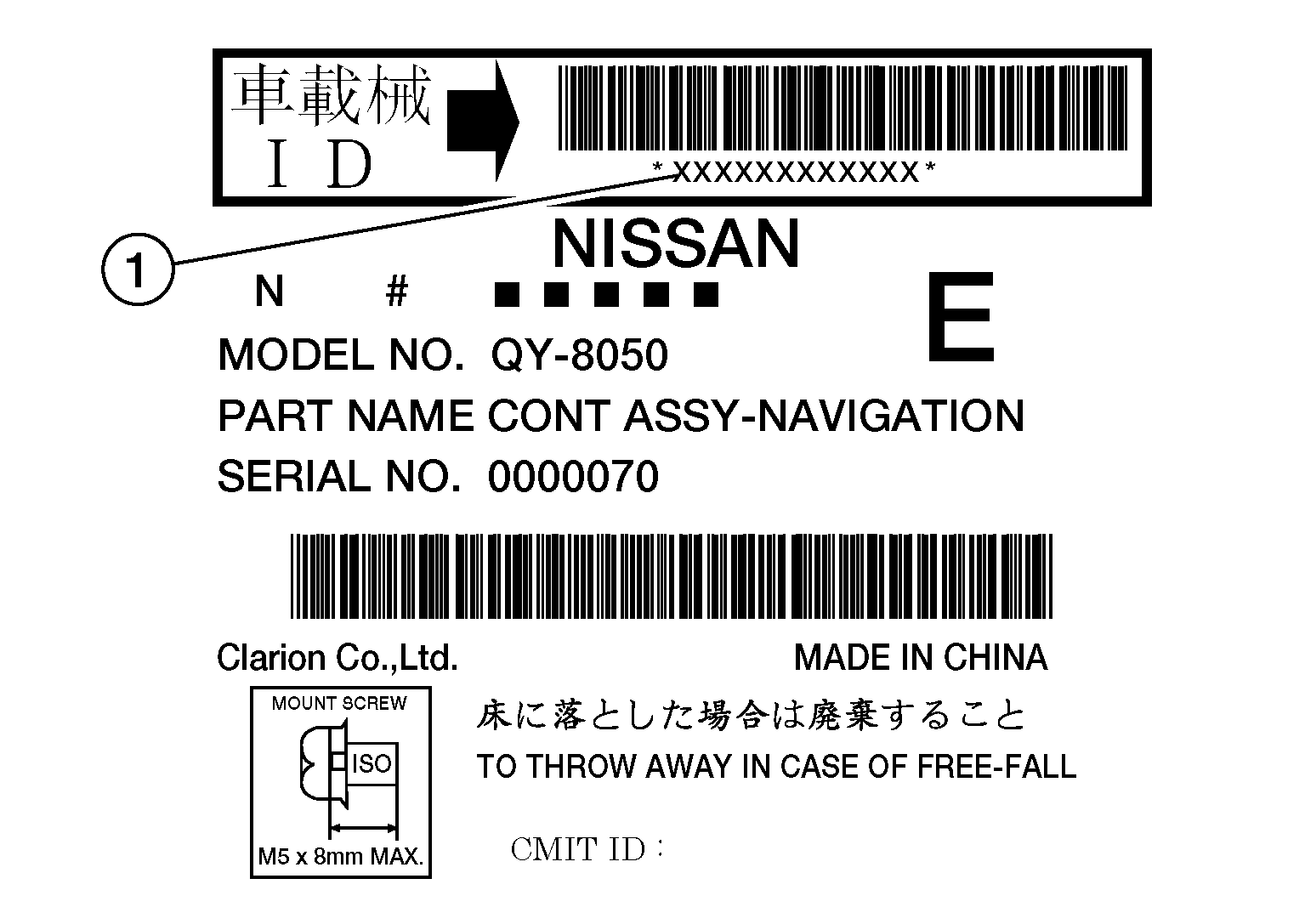

Locate the registration code (1) on the AV control unit's label.

Courtesy of NISSAN NORTH AMERICA, INC.

Record the registration code.

GO TO 2.

REGISTER REPLACEMENT AV CONTROL UNIT
Register the replacement AV control unit by contacting NISSAN Owner Services. Refer to TSB.

GO TO 3.
OPERATION CHECK
Verify that the AV control unit "APPS" function operates normally.

Work End.
