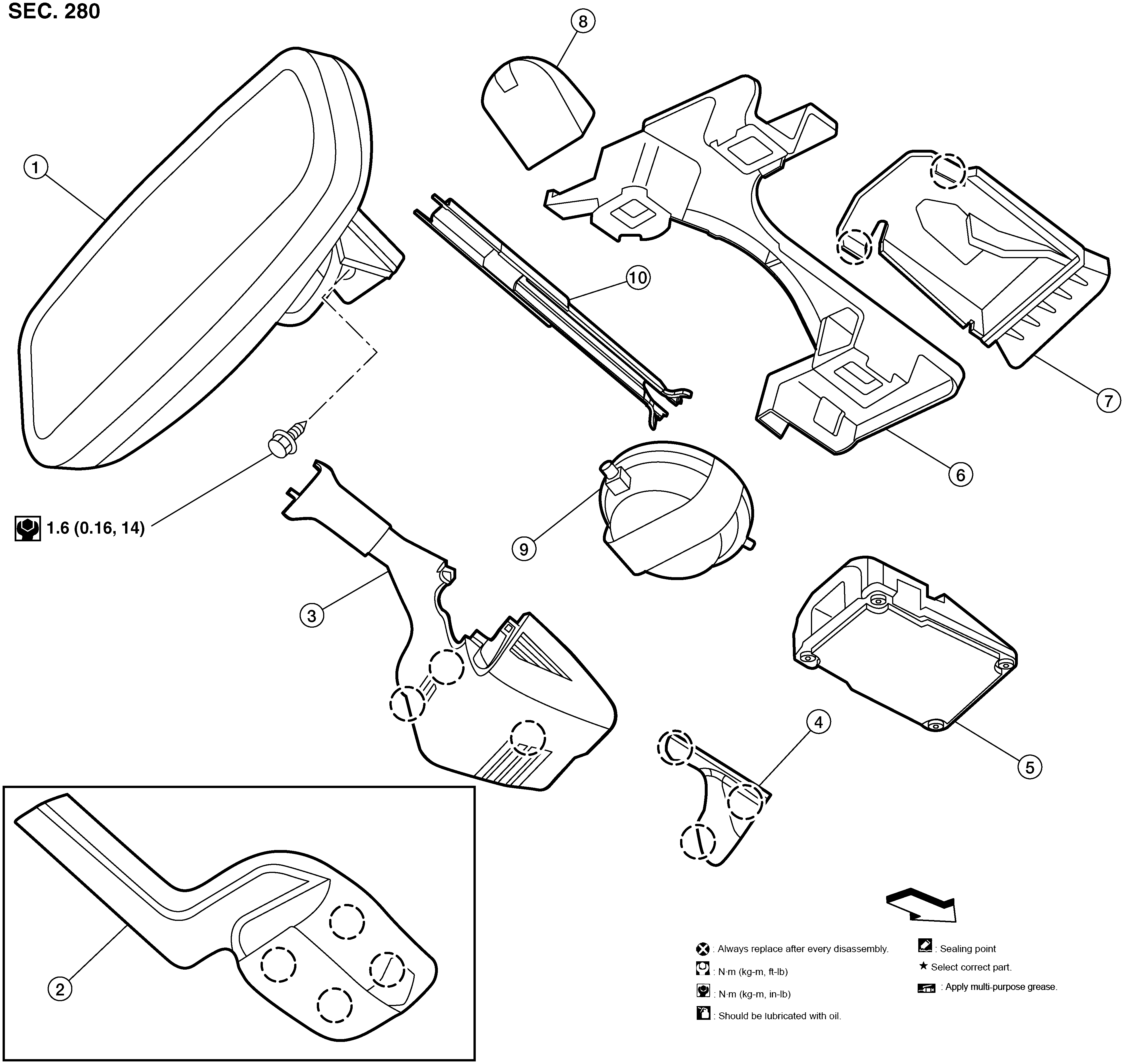

Exploded View
WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Inside mirror |
2. |
Rain sensor cover (without lane departure warning) |
3. |
Lane camera cover [RH (with lane departure warning)] |
|
4. |
Lane camera cover [LH (with lane departure warning)] |
5. |
Lane camera (if equipped) |
6. |
Lane camera cover bracket (if equipped) |
|
7. |
Lane camera bracket (if equipped) |
8. |
Mirror base |
9. |
Rain sensor (if equipped) |
|
10. |
Inside mirror finisher (if equipped) |
|
Pawl |
|
Front |
