Removal and Installation: Removal

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the driver seat. Refer to Removal and Installation .

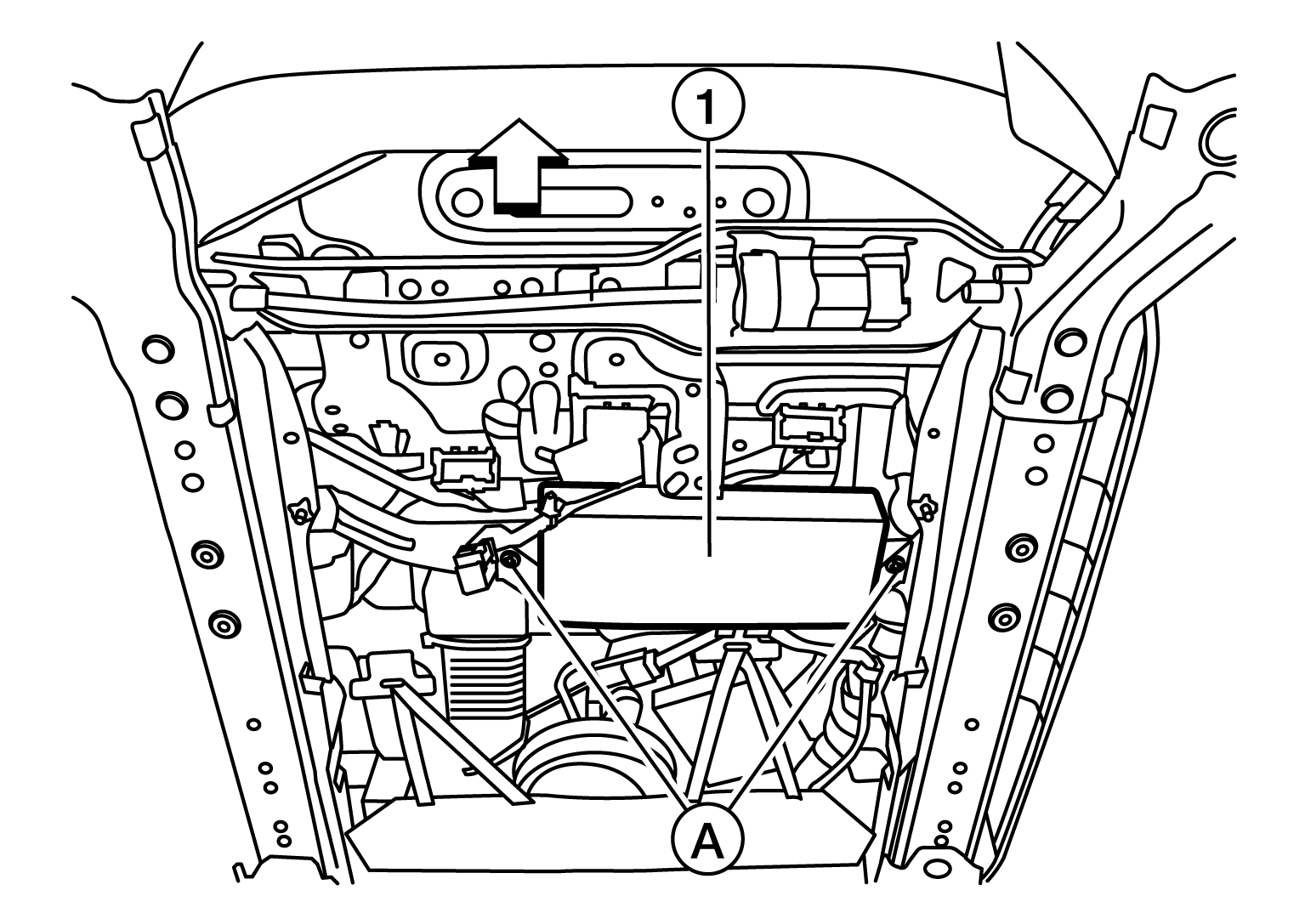

    GNSALJIA0784Z-784Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL : Front

  2. Remove the two driver seat control unit screws (A).
  3. Disconnect the two harness connectors from driver seat control unit.
  4. Remove the driver seat control unit (1).
