Removal and Installation: Removal

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal. Refer to Removal and Installation .
  2. Remove the multifunction switch. Refer to Removal and Installation .

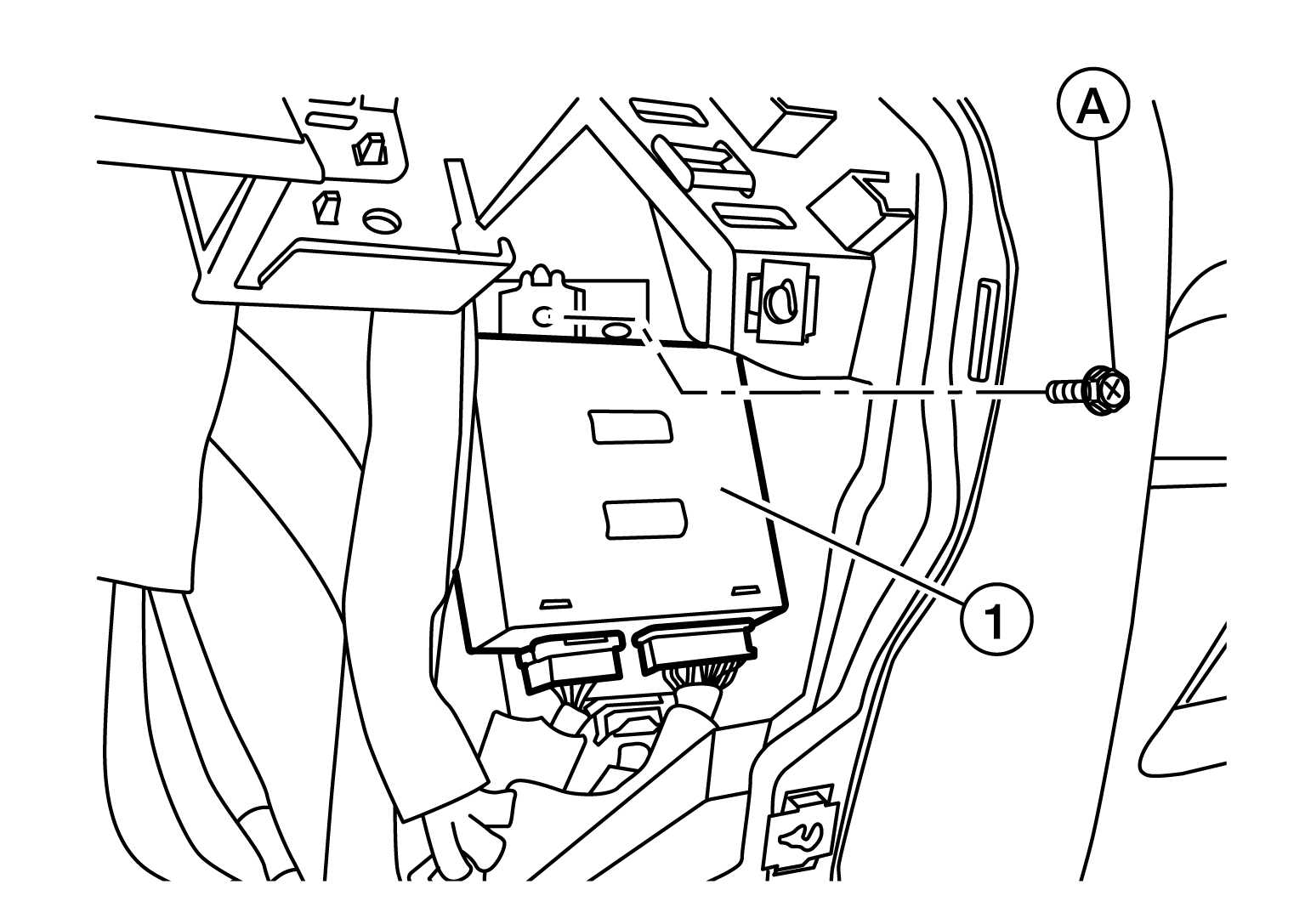

  3. Remove the automatic drive positioner control unit screw (A).
    GNSDB114715Courtesy of NISSAN NORTH AMERICA, INC.
  4. Disconnect the two harness connectors from the automatic drive positioner control unit (1).
  5. Remove automatic drive positioner control unit (1).
