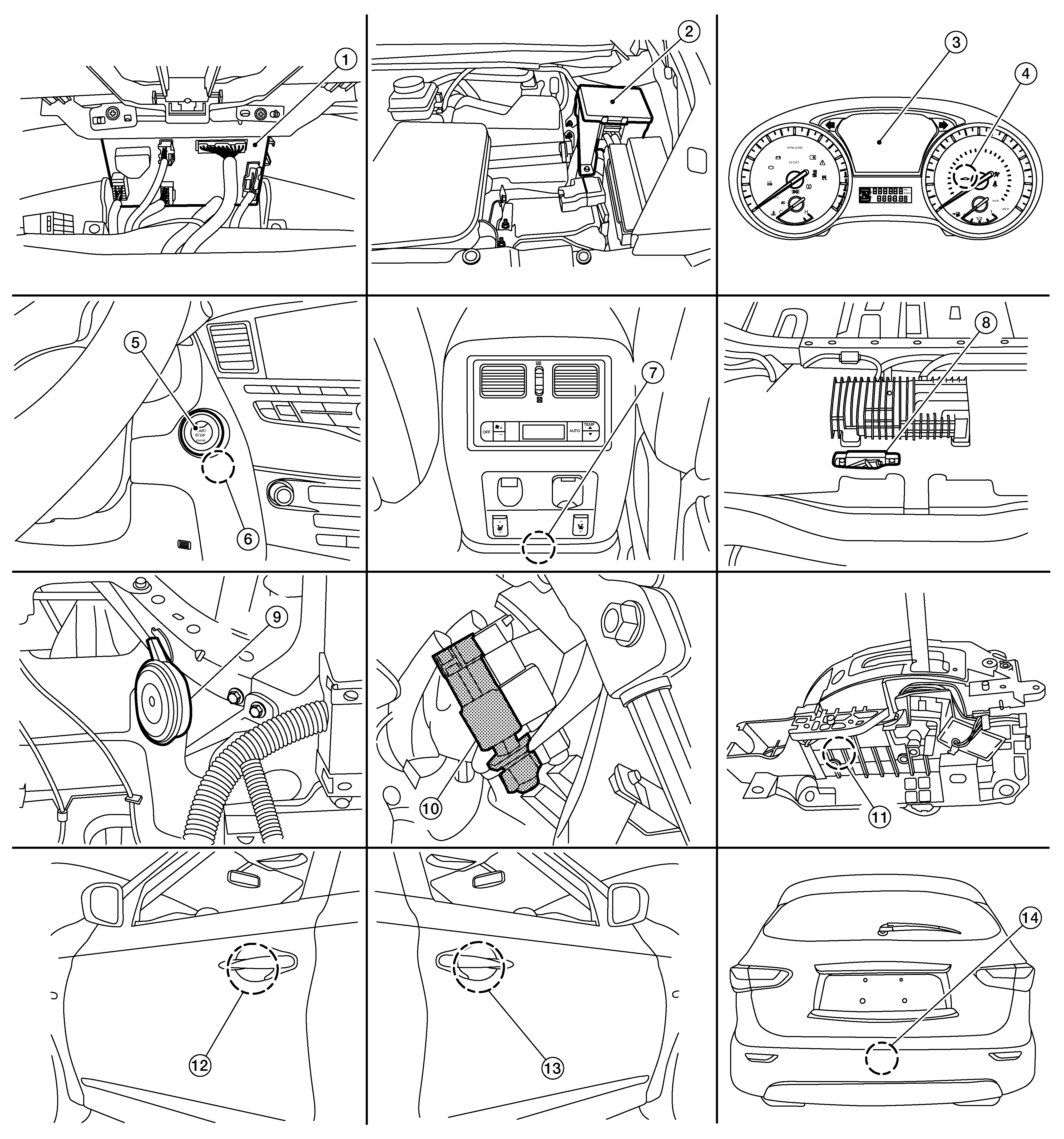

Component Parts Location
WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
BCM (view with combination meter removed) |
2. |
IPDM E/R |
3. |
Combination meter |
|
4. |
Security indicator lamp |
5. |
Push-button ignition switch |
6. |
NATS antenna amp. |
|
7. |
Inside key antenna (console) |
8. |
Inside key antenna (luggage room) (view with rear carpet removed) |
9. |
Anti theft horn (view with right headlamp removed) |
|
10. |
Stop lamp switch |
11. |
CVT shift selector (park position switch) |
12. |
Outside key antenna (drivers side) |
|
13. |
Outside key antenna (passenger side) |
14. |
Outside key antenna (rear bumper) |
