Removal and Installation: Removal
WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the instrument lower panel LH. Refer to Removal and Installation .

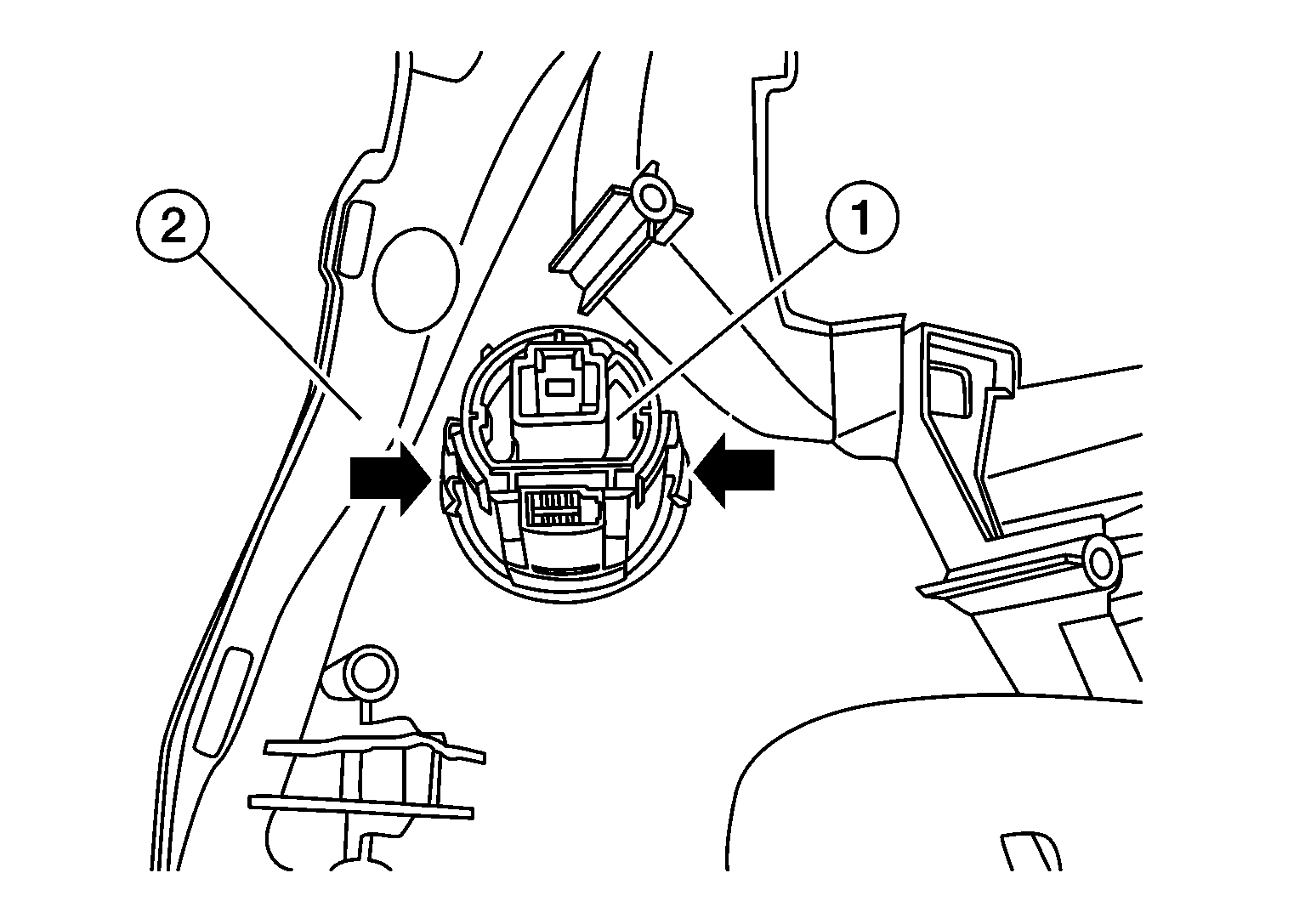

- Release the pawl (
) on each side of NATS antenna amp (1) and remove from the instrument pad (LH) (2).
- Release the pawl on each side and remove the NATS antenna amp from the push-button ignition switch.
