REMOVAL (Canada only)

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove instrument panel assembly. Refer to Removal and Installation.
  2. Disconnect the harness connector from the dongle unit (1).

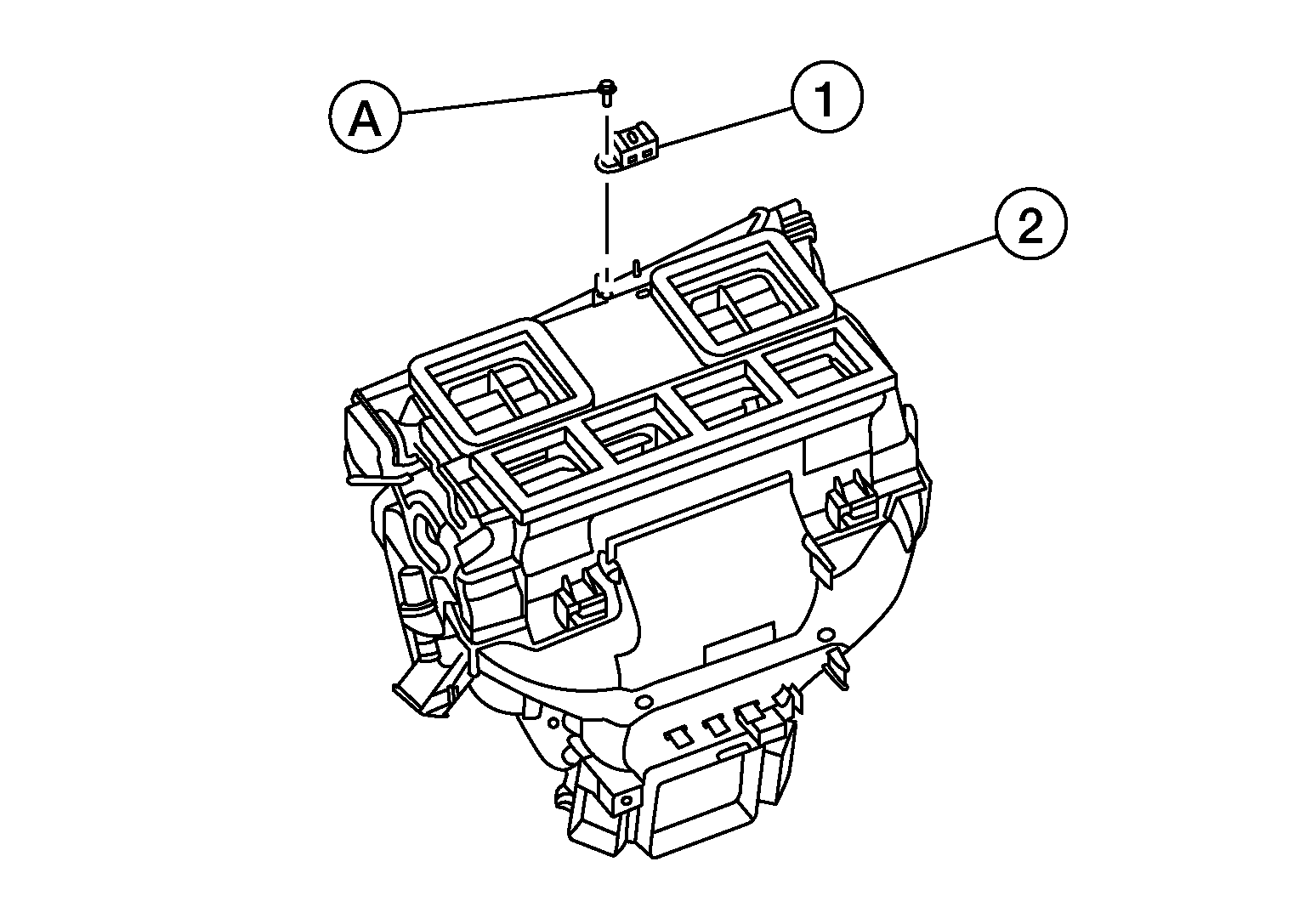

    GNSAWDIA1233Z-233Courtesy of NISSAN NORTH AMERICA, INC.
  3. Remove screw (A) and dongle unit (1) from heating and cooling unit assembly (2).
