Removal and Installation - Anti-Theft: Removal

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front combination lamp (RH). Refer to Removal and Installation .

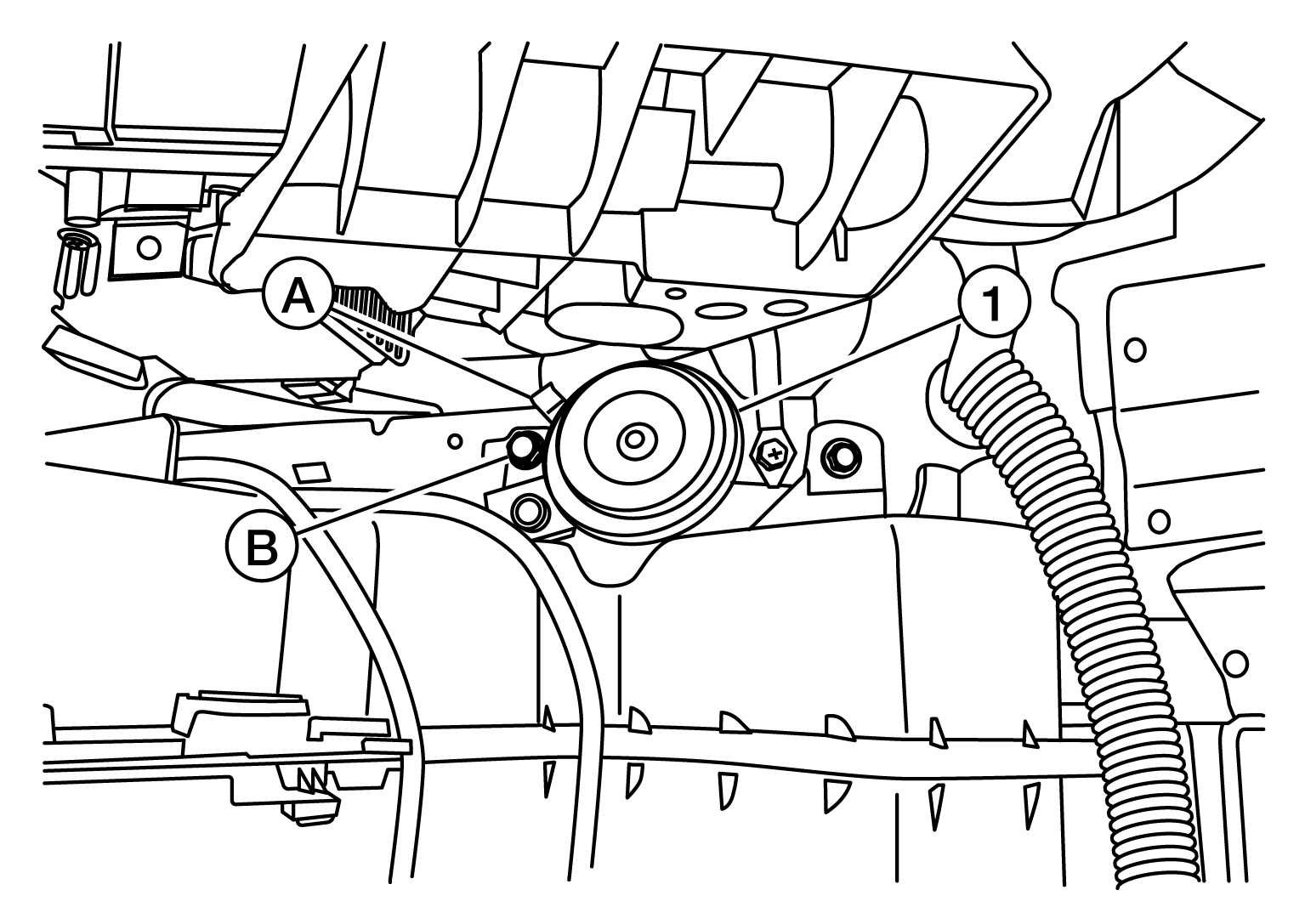

  2. Disconnect the harness connector (A) from anti-theft horn (1).
    GNSALKIA2479Z-479Courtesy of NISSAN NORTH AMERICA, INC.
  3. Remove the anti-theft horn bolt (B) and anti-theft horn (1).
