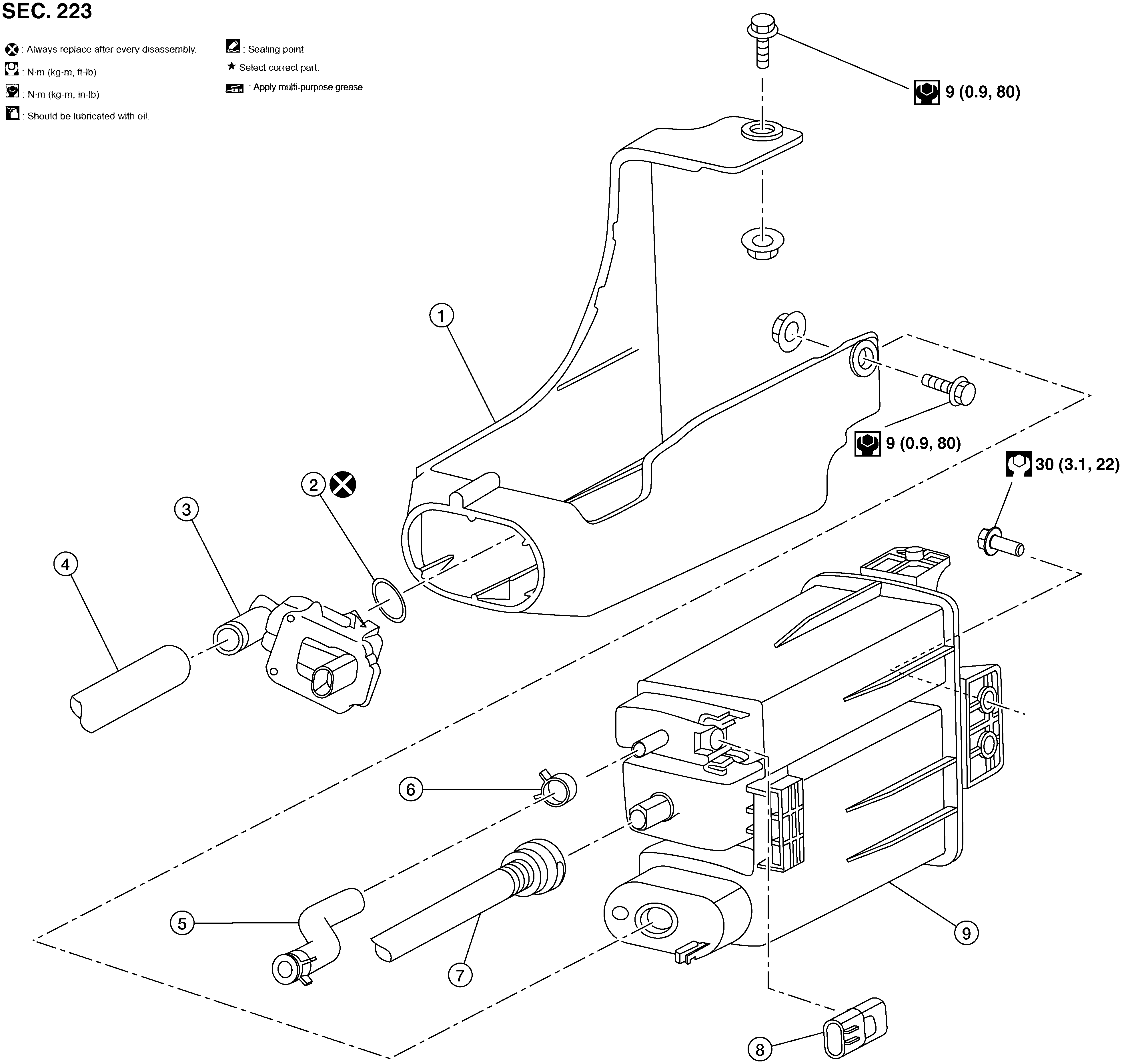

Exploded View
WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
|
1.
|
EVAP canister protector
|
2.
|
O-ring
|
3.
|
EVAP canister vent control valve
|
|
4.
|
EVAP canister vent control valve hose
|
5.
|
EVAP canister purge hose
|
6.
|
Hose clamp
|
|
7.
|
EVAP vent line
|
8.
|
EVAP control system pressure sensor (with O-ring)
|
9.
|
EVAP canister
|
