Removal and Installation: Removal
WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect EVAP canister vent control valve hose from EVAP canister vent control valve.
- Disconnect the harness connector from EVAP canister vent control valve.

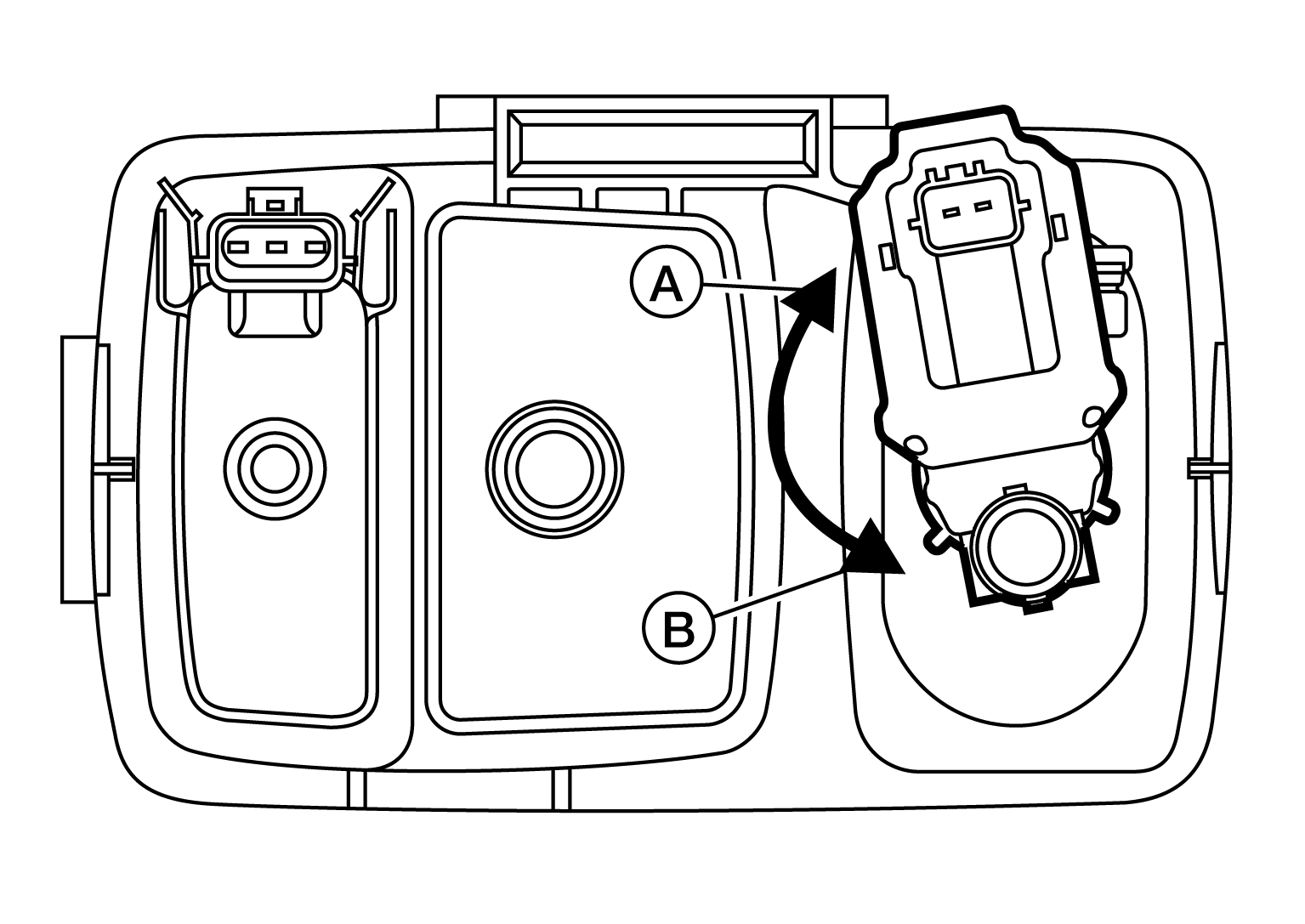

- Turn EVAP canister vent control valve counterclockwise.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
- Remove the EVAP canister vent control valve.
