Exploded View

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

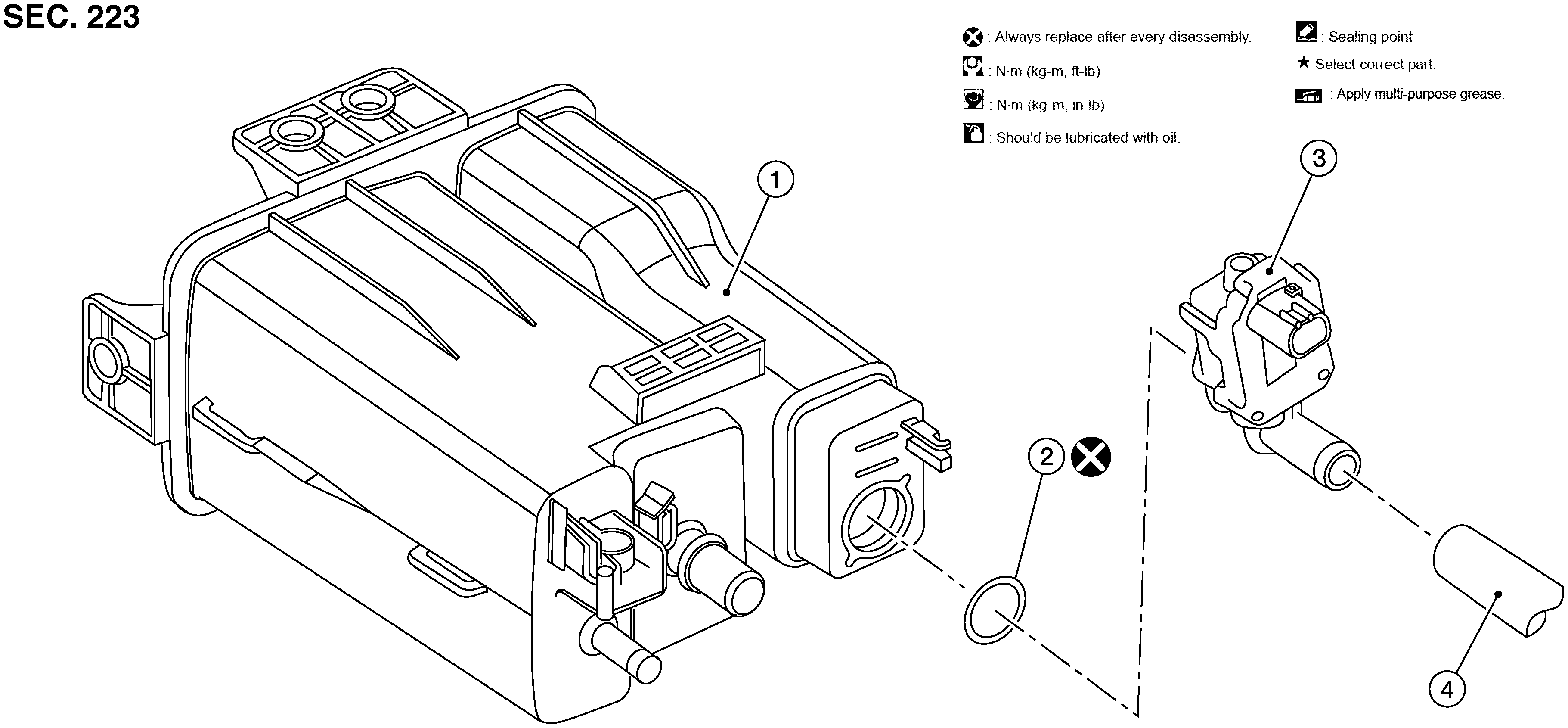

GNSAWBIA0233Z-233Courtesy of NISSAN NORTH AMERICA, INC.

1.

EVAP canister

2.

O-ring

3.

EVAP canister vent control valve

4.

EVAP canister vent control valve hose
